Factory-direct fire hose reel cabinets, hose rack cabinets and landing valve cabinets for UAE and Saudi Arabian projects — also called FHC or fire cabinet. Single or double door, recessed or surface, mild steel in RAL 3000 or brushed SS 304 / 316, with bilingual Arabic and English door lettering. Built to house BS EN 671-1 hose reels and BS 5041 landing valves, or NFPA-style 1.5 in hose racks for Saudi work.
The UAE Fire and Life Safety Code of Practice and the Saudi Building Code SBC 801 govern the system — hose travel distance, standpipe class, maintenance. Neither publishes a cabinet dimension. Certification (LPCB, Kitemark, UL, FM) is normally held by the hose reel or the landing valve inside, not by the steel enclosure. We build the enclosure to the sizes those approved components need, and we say plainly what we do and do not hold.
UAE projects mostly specify a BS EN 671-1 semi-rigid hose reel, 1 in × 30 m, in a single or double cabinet. Civil Defence reviews the system and the component approvals — the cabinet is the housing that suits them.
Saudi work under SBC 801 follows NFPA 14, which puts 1.5 in or 2.5 in lay-flat hose on a rack rather than a reel. That is a different, shallower cabinet — 750 × 700 × 200 mm upward — with bilingual FIRE HOSE RACK lettering.
Material certificates, ISO 9001 quality records and third-party EN 60529 enclosure ingress-protection test reports. We do not hold or claim LPCB, Kitemark, UL or FM listing on the cabinet.
The sizes Gulf consultants and contractors specify, in millimetres, H × W × D. Every model is available recessed or surface mounted, in mild steel or stainless, with the door style and lettering your project requires.
Two different products under one page, because the two markets follow two different codes. UAE work runs on BS EN 671-1 hose reels in a deeper cabinet; Saudi work under SBC 801 follows NFPA 14, which puts lay-flat hose on a pin rack in a shallower box. We build both, in stainless or powder-coated steel, with bilingual door lettering to the wording your consultant approves.

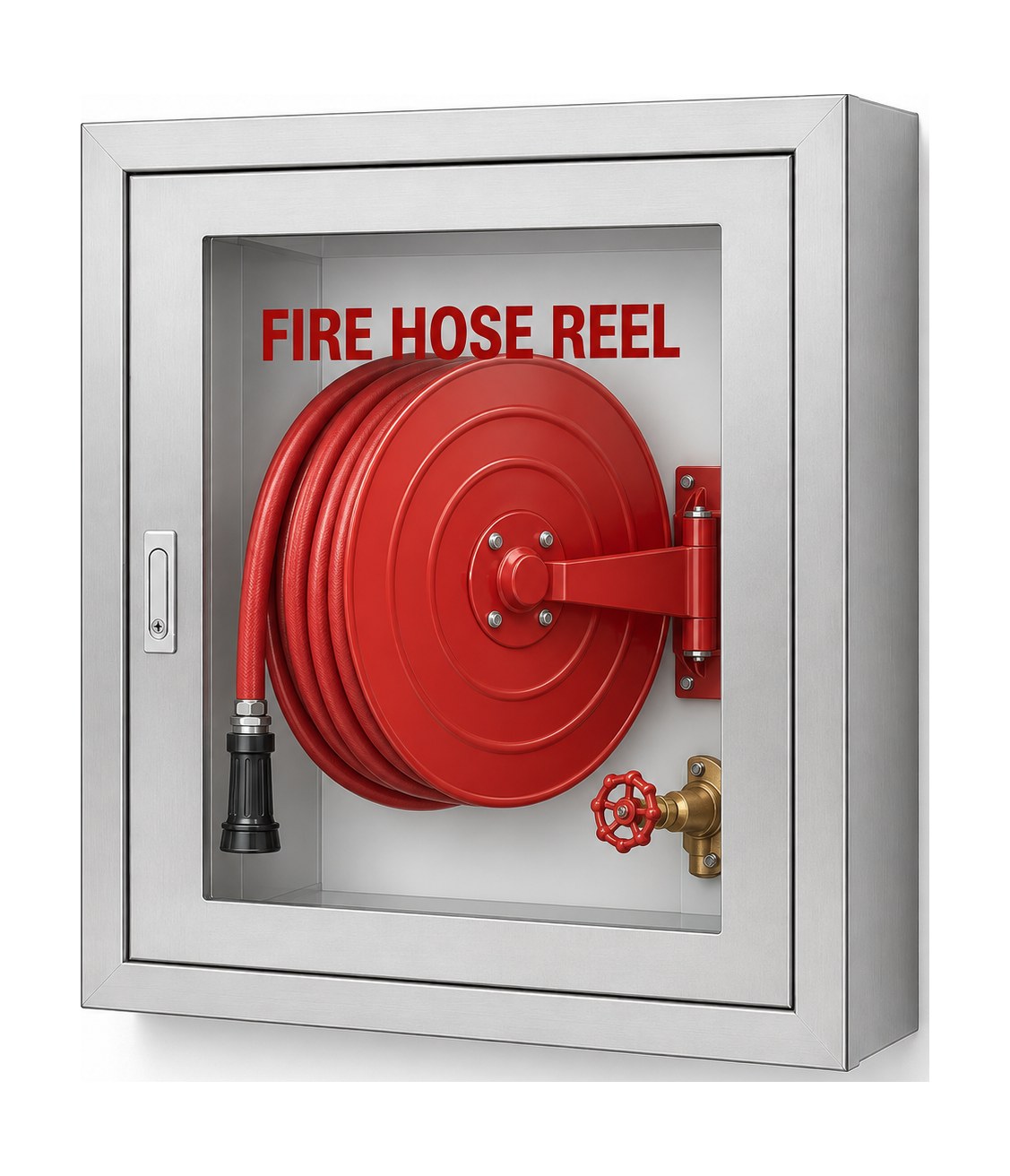

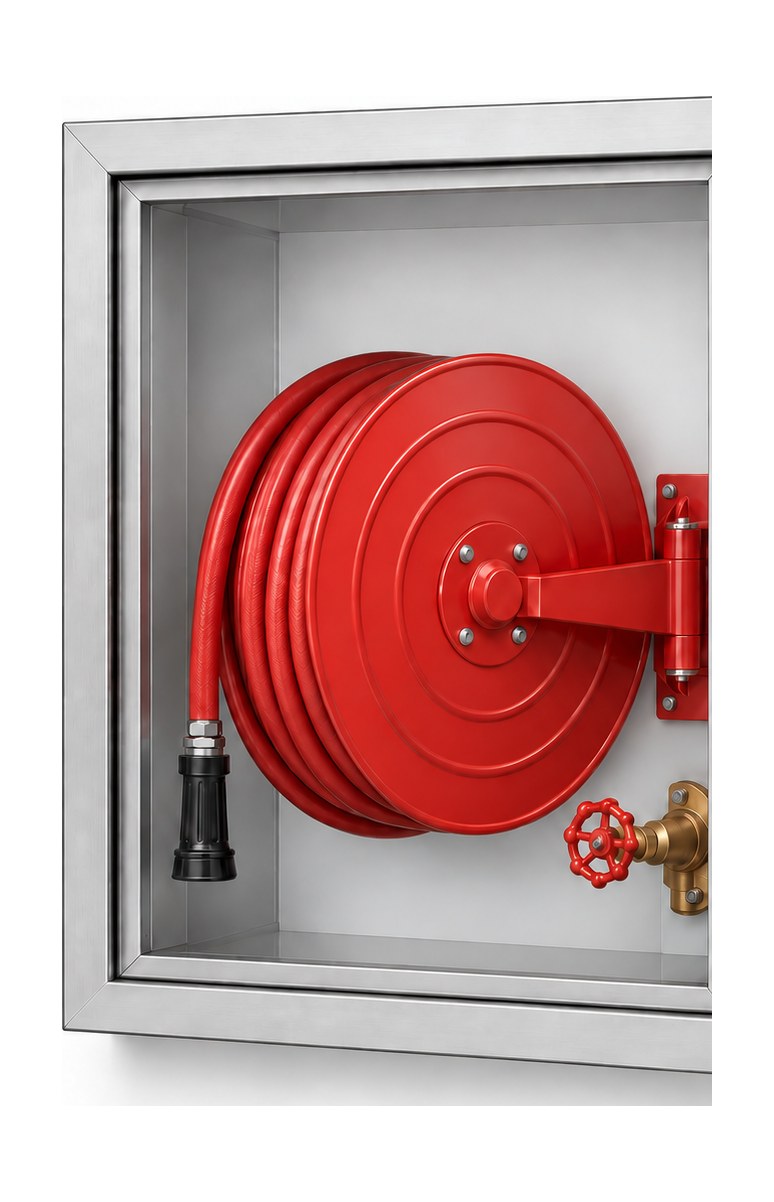

800 × 750 × 300 mm recessed, 850 × 750 × 300 mm surface, in SUS 304 or 316, no. 4 brushed. Houses a 1 in × 30 m semi-rigid reel to BS EN 671-1 with its inlet valve. Glass or solid door, break-glass or cylinder lock. The finish specified for hotel, airport and mall interiors across the Emirates.

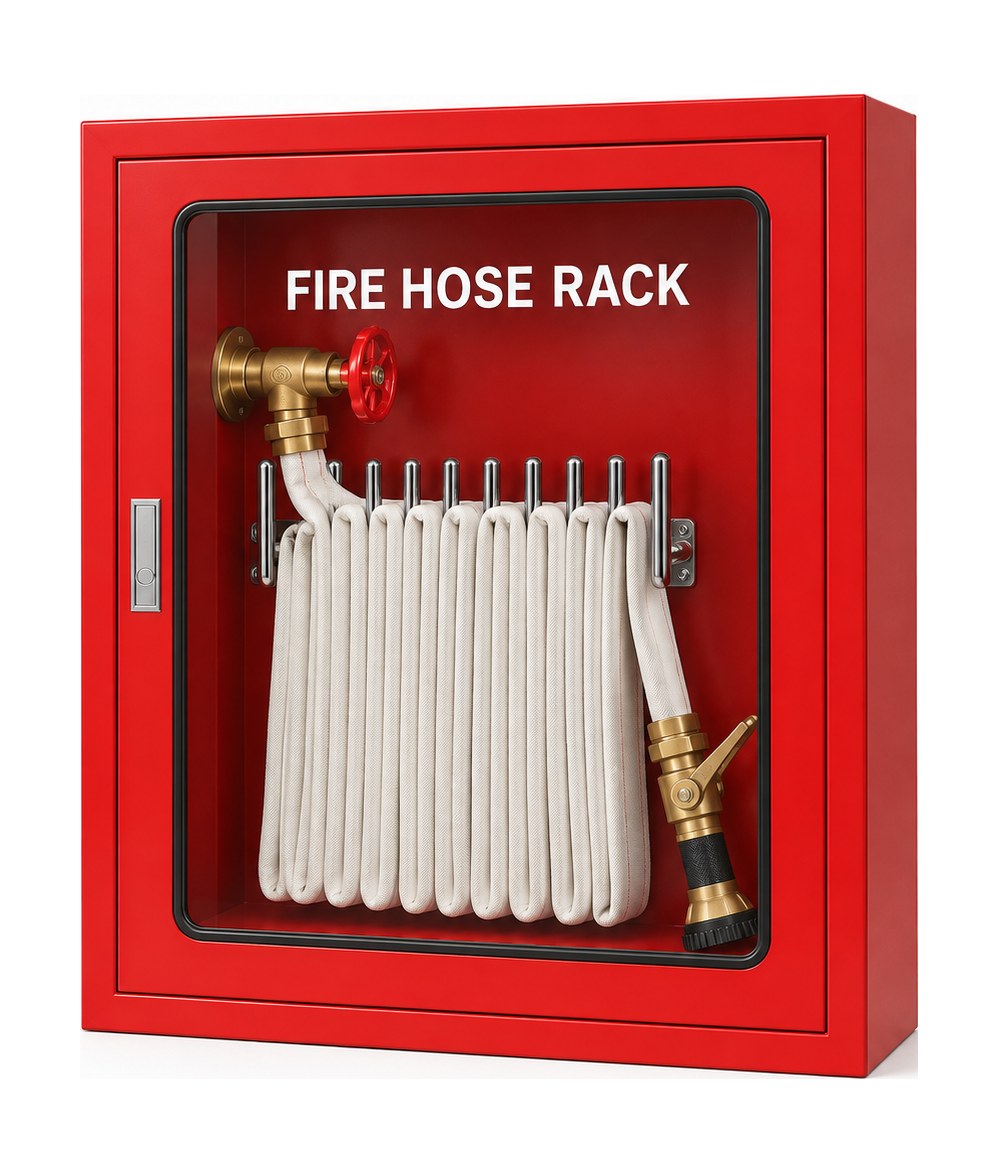

750 × 700 × 200 mm up to 900 × 800 × 230 mm, galvanised 1.2 mm minimum or SUS 304. Houses 1.5 in lay-flat hose folded on a chrome pin rack with a brass angle valve and nozzle — the NFPA 14 arrangement SBC 801 projects specify. Shallower than a reel cabinet, powder-coated RAL 3000 or stainless.
| Model | What it houses | Size H × W × D (mm) | Mounting | Material | Door |
|---|---|---|---|---|---|
| HR-300R | Single hose reel, 1 in × 30 m | 800 × 750 × 300 | Recessed | MS 1.2–1.5 mm / SS 304 | Solid, glazed or break-glass |
| HR-300S | Single hose reel, surface type | 850 × 750 × 300 | Surface | MS 1.2–1.5 mm / SS 304 | Solid, glazed or break-glass |
| HR-900R | Hose reel + fire extinguisher, vertical | 1600 × 800 × 300 | Recessed | MS 1.2–1.5 mm / SS 304 | Two doors, one per compartment |
| HR-900S | Hose reel + fire extinguisher, surface | 1650 × 800 × 300 | Surface | MS 1.2–1.5 mm / SS 304 | Two doors, one per compartment |
| HR-600H | Hose reel + extinguisher, horizontal | 1050 × 800 × 230 | Recessed or surface | MS 1.2 mm / SS 304 | Two doors side by side |
| HRK-38 | Hose rack cabinet, 1.5 in lay-flat hose | 750 × 700 × 200 to 900 × 800 × 230 | Recessed or surface | Galvanised 1.2 mm min / SS 304 | Glazed or break-glass, bilingual lettering |
| LV-40 | Landing valve cabinet, 2.5 in valve | 400 × 600 × 300 | Surface or recessed | Galvanised 1.0–1.2 mm / SS | Solid with break-glass |
| Custom | Any reel, rack or valve arrangement | To your drawing, up to 3,000 mm | Any | MS / SS 201 / 304 / 316 / aluminium | To your specification |
Stainless bodies add roughly 10 mm to the depth over the mild steel equivalent. Depth of 230 mm is the practical minimum for a swinging-arm reel; 300 mm suits a fixed drum with the valve behind. Send the reel or valve datasheet and we confirm internal clearance before quoting.
| Feature | Standard | Options |
|---|---|---|
| Body | Mild steel 1.2 mm, powder-coated RAL 3000 red | 1.5 mm or 2.0 mm; SUS 304 brushed; SUS 316 for coastal and desalination sites |
| Stainless finish | No. 4 brushed. Stainless bodies are 10 mm deeper than the mild steel equivalent (310 instead of 300) — the Gulf convention; allow for it in the wall pocket | Mirror polish, hairline, or rose-gold PVD for hotel lobbies |
| Door | Solid steel with break-glass, or glazed panel | Aluminium-framed glass, louvred, or acrylic panel |
| Lettering | Bilingual Arabic and English — “FIRE HOSE REEL” with the Arabic equivalent | “FIRE HOSE RACK”, “FIRE EXTINGUISHER”, “LANDING VALVE”, or your own wording and logo |
| Lock | Cylinder key, keyed alike across a project | Break-glass, padlock hasp, or a Civil Defence-style latch |
| Outdoor | Gasketed door and drip lip | Galvanised body, SS 316, or GRP-lined for rooftop and coastal plant |
For hotel and airport interiors we also supply hairline and mirror stainless with concealed hinges. Free OEM: your brand and lettering at no tooling cost.
We manufacture the cabinet and source matched components on request. Most Gulf contractors buy the enclosure from us and fit their own approved reel or valve. Parts of a hose reel cabinet: body, door and frame, glass or break-glass panel, lock, hinges, reel bracket, valve boss, drip lip, lettering.
| Recessed | Body inside the wall, frame over the opening. Standard in hotel corridors, malls and airport terminals. Rough opening ≈ cabinet H + 20 mm × W + 20 mm. |
| Surface | Full body on the wall face — 50 mm taller than the recessed equivalent because the frame sits proud. Car parks, plant rooms, warehouses. |
| Free-standing | Two-compartment 1600–1650 mm bodies on a plinth, for open floor plates and industrial yards where there is no wall. |
| Outdoor and rooftop | Gasketed doors, drip lips, galvanised or SUS 316 bodies for coastal humidity and desalination plant. |
Tell us the wall type and finish thickness and we cut the trim frame to match. For stainless cabinets in lobbies we can supply concealed hinges and a flush pull.
Straight from the workshop capability sheet, so your consultant knows what is possible before drawing. Building fire cabinets in Jiangsu, China since 2010.
We supply contractors, MEP subcontractors and distributors across the GCC, FOB from our port. Project schedules and distributor stock orders are both welcome.
FOB pricing within 24 hours from your specification, BOQ or drawing. Tiered by quantity and quoted per model.
One cabinet built to your drawing in about 7 working days. Sample cost is borne by the buyer and credited against the first order on request.
Material certificates, ISO 9001 records and third-party EN 60529 enclosure test reports with every order. No LPCB, Kitemark, UL or FM claim on the cabinet.
Free OEM: your logo, bilingual lettering, colour and packaging with no tooling fee.
Assembled or knocked-down, in export cartons or crates with corner and glass protection.
Sea freight to Jebel Ali, Abu Dhabi, Dammam, Jeddah or your named port, FOB Xiamen.
Laser cutting, CNC bending, welding, powder coating, stainless finishing and export packing across three production bases — the line that will build your cabinets.
Everything a consultant, contractor or Civil Defence submission needs. The Gulf standard-size drawing pack is online below — eight sheets as PDF plus the same drawings as AutoCAD DXF, free and with no sign-up. CAD blocks for plan layouts and Revit families are sent within one working day on request.
A single hose reel cabinet for a 1 in × 30 m reel is typically 800 × 750 × 300 mm recessed, or 850 × 750 × 300 mm surface mounted. Where the cabinet also holds a portable extinguisher, the vertical two-door size is 1600 × 800 × 300 mm recessed. Horizontal two-door cabinets run about 1050 × 800 × 230 mm.
A hose reel cabinet holds a semi-rigid reel on a drum, the BS EN 671-1 arrangement common in the UAE. A hose rack cabinet holds 1.5 in lay-flat hose folded on a pin rack, the NFPA 14 arrangement common in Saudi Arabia under SBC 801. The rack cabinet is shallower — 200 to 230 mm — and usually carries bilingual FIRE HOSE RACK lettering.
We manufacture to your project specification, which your consultant aligns with the UAE Fire and Life Safety Code or SBC 801. Approvals in both markets attach to the hose reel and the landing valve, which your approved supplier provides. We supply material certificates, ISO 9001 records and third-party EN 60529 enclosure test reports. We do not hold LPCB, Kitemark, UL or FM listing and never claim it.
Yes — SUS 304 for interiors and SUS 316 for coastal and desalination sites, in No. 4 brushed, hairline or mirror finish, with concealed hinges and flush pulls where the architect wants a clean face. Rose-gold and bronze PVD finishes are available for hotel lobbies.
Yes. Outdoor cabinets get a gasketed door, a drip lip and either a galvanised body or SUS 316. For rooftop plant we also stiffen the door and add a second latch point so wind does not distort it.
Bilingual Arabic and English is the Gulf convention — typically the Arabic for fire hose reel or fire extinguisher above or beside the English wording. Send us the exact Arabic string your consultant approves and we screen-print or etch it; we do not translate safety wording ourselves.
Yes — free OEM: your brand, colour, bilingual lettering and packaging with no tooling fee. We already produce hose reel cabinets, hose rack cabinets and extinguisher cabinets under distributors’ own brands. Send a schedule and we quote FOB with tiered pricing.
Yes — landing valve cabinets around 400 × 600 × 300 mm and breeching inlet cabinets in 2-way and 4-way sizes to BS 5041 practice. See our breeching inlet cabinet page for those sizes.
Also searched as: fire hose reel cabinet · hose reel cabinet · hose reel box · FHC fire hose cabinet · fire cabinet · hose rack cabinet · fire hose rack cabinet · landing valve cabinet · fire hose reel cabinet suppliers in UAE · fire cabinet Saudi Arabia · fire equipment cabinet
Send drawings, a BOQ or just quantities — our export team replies with a factory-direct FOB quotation within 24 hours.
