Factory-direct fire hose cabinets for sale in the Philippines — also searched as fire fighting cabinet Philippines, FHC cabinet or fire hose box — for distributors, contractors and BPO, mall and high-rise projects. Recessed type or surface type, single or double door, indoor or outdoor, supplied as complete 50 ft / 100 ft sets or as empty cabinets to your BOQ. Powder-coated steel or stainless, made to your drawing.
Fire protection in the Philippines is governed by RA 9514 (the Revised Fire Code), which draws heavily on NFPA standards — standpipe and hose systems in commercial buildings typically follow NFPA 14 Class II / III practice, with 1.5-inch hose on the wall for occupant use. Your consultant writes the specification; we manufacture the cabinet to that spec and ship the paperwork your BFP acceptance needs.
The Revised Fire Code drives what building projects must install. Your consultant specifies the system; we manufacture cabinets to that spec — sizes, valve position, hose type and signage layout.
Class II and III systems put 1.5-inch hose on the wall for occupant use — that hose lives in a fire hose cabinet. We build Class 1, Class 2 and Class 3 fire hose cabinets: single-door, double-door, recessed type and surface type. See our guide to fire hose cabinet Class I / II / III for how the classes differ.
Material certificates, ISO 9001 quality records and third-party EN 60529 enclosure conformity documents ship with your order to support BFP acceptance paperwork.
Fire hose cabinet sizes in mm and in inches. Philippine suppliers list cabinets in inches, height × width × depth: 32 × 27 × 7 in for a 100 ft hose and 24 × 27 × 7 in for 50 ft (fire hose cabinet size Philippines buyers specify by hose length); consultants' drawings carry the same sizes in mm. We build those exact Philippine-standard sizes, plus the SOKEI models pictured below, in recessed type or surface type, indoor or outdoor, powder-coated steel or as a stainless steel fire hose cabinet (SUS 304). Send your architect's drawing or BOQ line and we quote to spec — fire hose cabinet dimensions Philippines projects use are customary, not mandated by RA 9514.

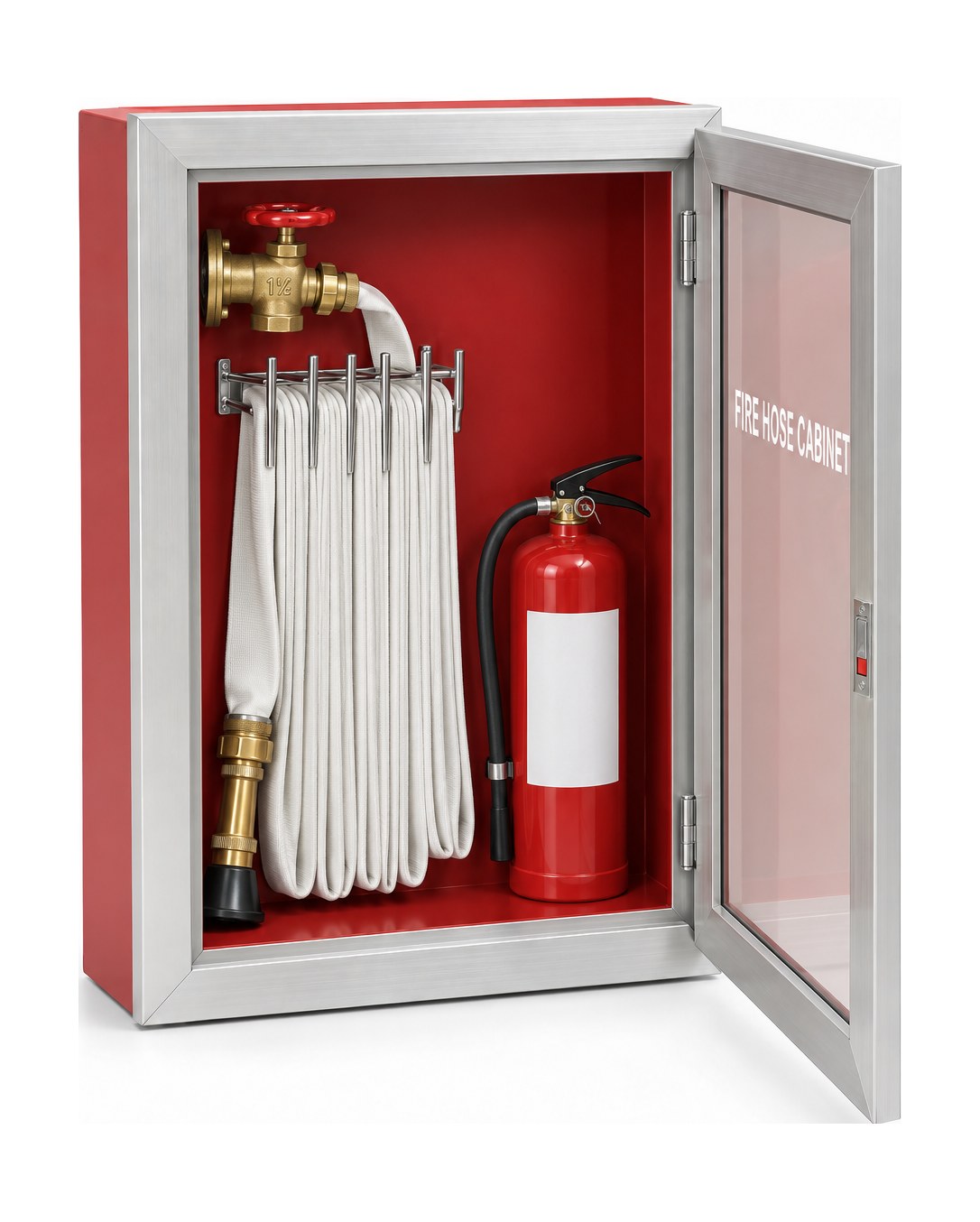

Both are shown closed and open. The inside view is the complete set as it ships: 1.5 in angle valve, pin-type hose rack with lay-flat hose, nozzle and portable extinguisher — the fire hose cabinet with complete accessories that Philippine BOQs call for.

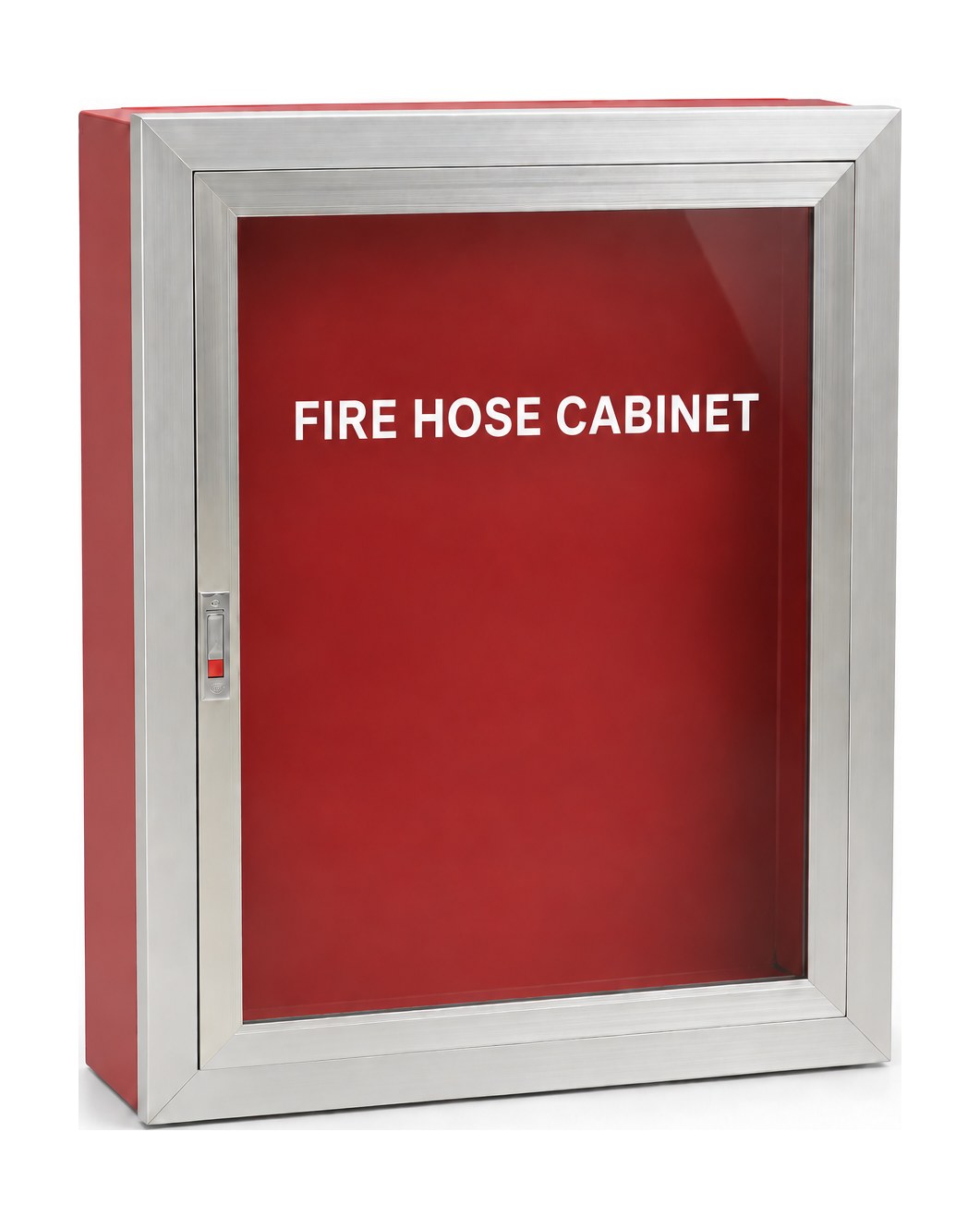

Wide aluminium trim frame covers the wall opening; aluminium-framed glass door with cylinder lock; RAL 3000 powder-coated steel body and back panel. Typical 800 × 650 × 240 mm (31½ × 25⅝ × 9½ in), or 178–200 mm deep for recessing into CHB walls; also made surface type and in the Philippine-standard 32 × 27 × 7 in and 24 × 27 × 7 in sizes. Holds a 50 ft or 100 ft hose set and one portable extinguisher.

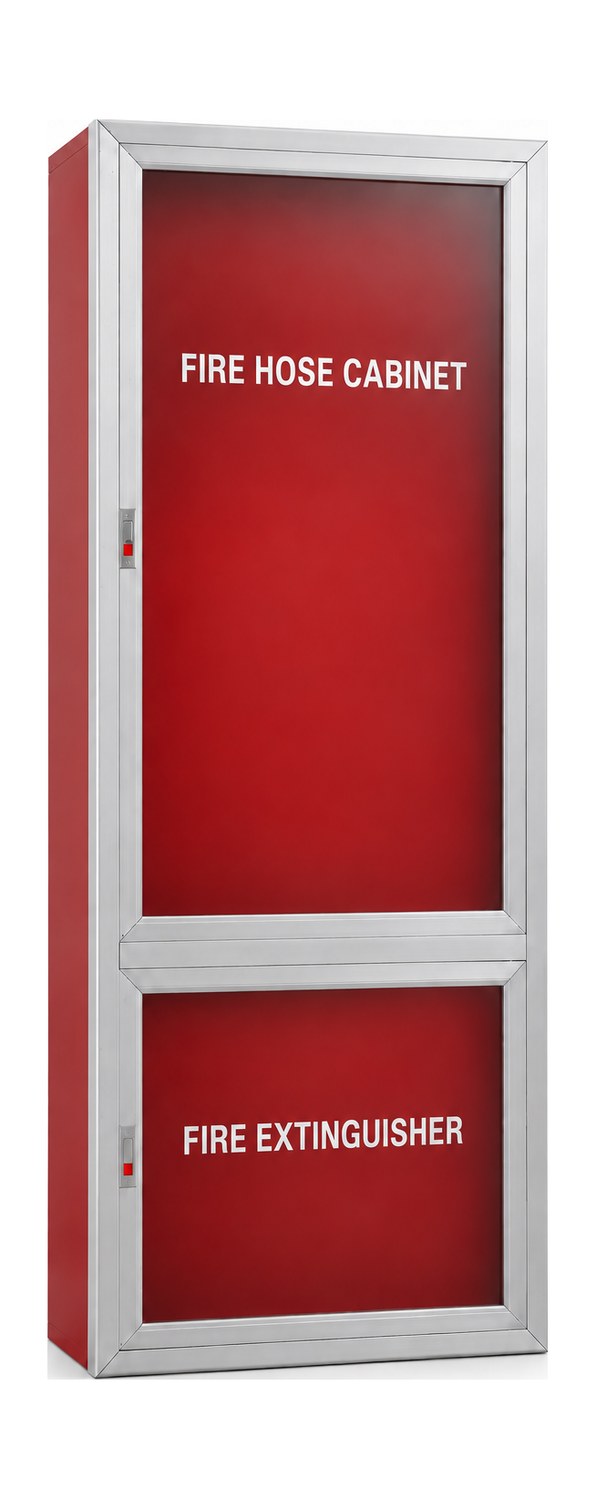

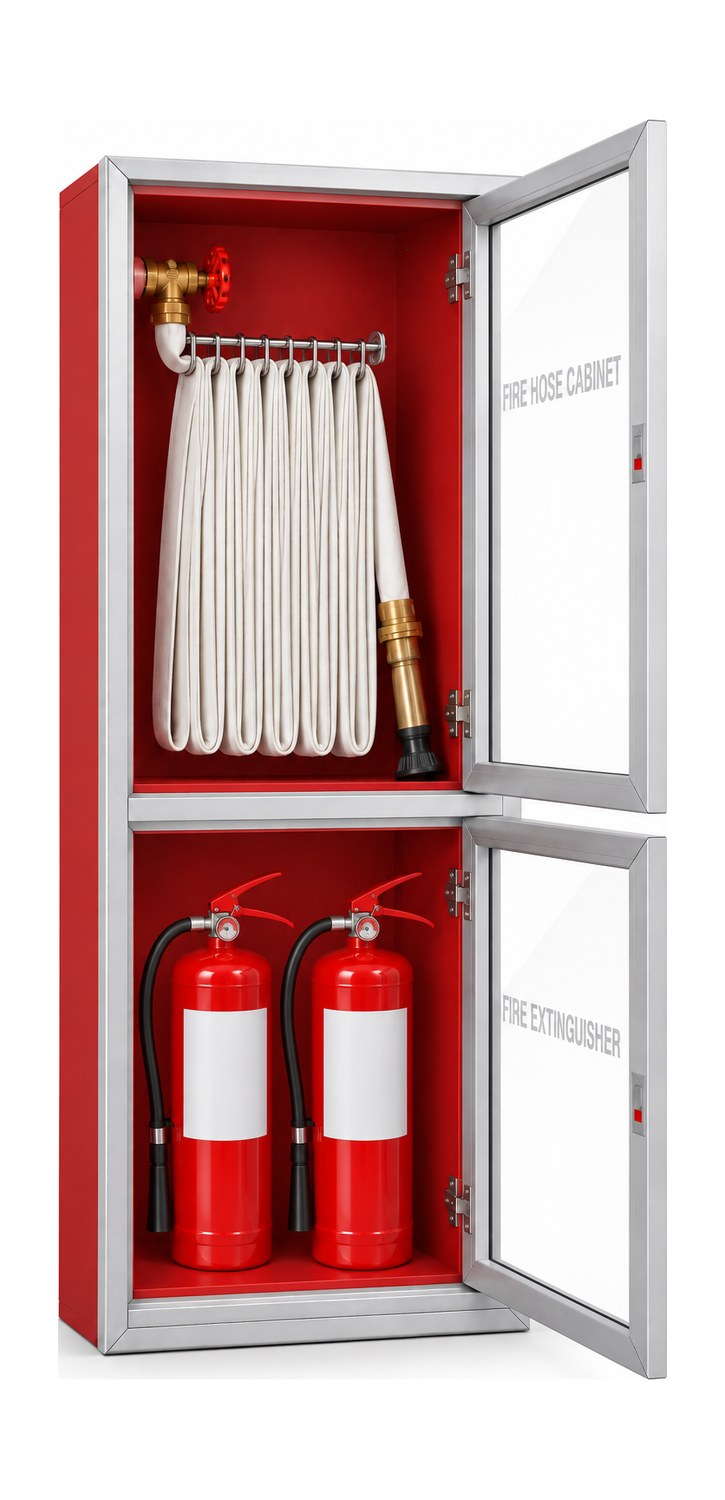

Fire hose cabinet above, fire extinguisher compartment below, in one aluminium-framed body — the fire fighting cabinet Philippine BPO, mall and high-rise projects specify for lobbies and corridors. Typical 1800 × 700 × 240 mm (71 × 27½ × 9½ in); two glass doors, each with its own lock.
| Model | Configuration | Size H × W × D (mm) | Size in inches | Mounting | Material / thickness | Door | Typically holds |
|---|---|---|---|---|---|---|---|
| FHC-100 | Philippine-standard 100 ft fire hose cabinet (the size local suppliers list) | 813 × 686 × 178 | 32 × 27 × 7 | Recessed or surface | CRS 1.2 mm (18 ga) powder-coated RAL 3000 / SUS 304 | Aluminium-framed clear-glass door, cylinder lock | 1.5 in × 100 ft hose on pin rack + angle valve + nozzle (+ fire axe) |
| FHC-50 | Philippine-standard 50 ft fire hose cabinet | 610 × 686 × 178 | 24 × 27 × 7 | Recessed or surface | CRS 1.2 mm (18 ga) powder-coated RAL 3000 / SUS 304 | Aluminium-framed clear-glass door, cylinder lock | 1.5 in × 50 ft hose on pin rack + angle valve + nozzle |
| FHC-S1 | SOKEI recessed single-door cabinet, aluminium trim frame (pictured) | 800 × 650 × 240 (178–200 deep for CHB walls) | 31½ × 25⅝ × 9½ | Recessed (surface on request) | CRS 1.0–1.2 mm powder-coated RAL 3000 / SUS 304 | Aluminium-framed glass door, cylinder lock | 1.5 in hose rack + angle valve + nozzle + 1 extinguisher |
| FHC-D2 | Double-door cabinet with extinguisher compartment | 800 × 650 × 220 | 31½ × 25⅝ × 8⅝ | Recessed or surface | CRS 1.0–1.2 mm / SUS 304 | Two doors, glass or solid | Hose set + 1 portable extinguisher |
| FHR-8 | Fire hose reel cabinet | 800 × 800 × 280 | 31½ × 31½ × 11 | Recessed or surface | CRS 1.2 mm / SUS 304 / 316 | Glass or solid | Swing hose reel + inlet valve |
| FHC-C18 | SOKEI floor-standing combination cabinet — hose cabinet above, extinguisher compartment below (pictured) | 1800 × 700 × 240 | 71 × 27½ × 9½ | Floor-standing / surface | CRS 1.2–1.5 mm / SUS 304 | Two aluminium-framed glass doors, cylinder locks | 1.5 in hose rack set above + 1–2 extinguishers below |
| FHB-O | Outdoor fire hydrant box | 800 × 650 × 250 | 31½ × 25⅝ × 9⅞ | Surface / stand | CRS 1.5 mm galvanised + powder coat / SUS 316 | Solid steel, weather-sealed | Landing valve + hose + nozzle |
All dimensions customizable; sheet thickness 0.8–2.0 mm to your spec. Recessed cabinets for 6 in / 8 in CHB (hollow-block) walls are made 178–200 mm (7–8 in) deep; 240 mm depth suits surface mounting or cabinets that also hold an extinguisher. Inch sizes are rounded to the nearest ⅛ in. Door: glass, solid or aluminium-framed; lock: cylinder key, handle or break-glass; door signage (FIRE HOSE CABINET lettering, sticker or label) in English or Filipino, your logo on request. Hose, angle valve (landing valve), nozzle and extinguisher are supplied as matched fire hose cabinet accessories on request — pipe size (valve and hose diameter) follows your standpipe design.
Philippine projects usually specify by hose length — 50 ft for compact floors, 100 ft for larger floor plates. Tell us which and we configure the rack and cabinet depth to match. Parts of a fire hose cabinet (names): cabinet body, door and frame, glass panel, lock and latch, hinges, hose rack or reel, angle valve, nozzle, hose, extinguisher bracket, door signage, trim frame (recessed). Spare glass, keys and locks are available as fire hose cabinet parts.
| Recessed type | Recessed fire hose cabinet: body sits inside the wall; trim frame covers the opening. Rough opening ≈ cabinet H + 20 mm × W + 20 mm; wall depth must clear the cabinet depth — for 6 in / 8 in CHB walls specify the 178–200 mm (7–8 in) deep version. |
| Surface type | Surface mounted (wall-mounted) fire hose cabinet: mounts on the wall face; no opening needed. Preferred for retrofit, parking levels and industrial floors. |
| Semi-recessed | Semi-recessed fire hose cabinet: part of the depth in the wall — for thin partition walls where a full recess is not possible. |
| Installation height | Fire hose cabinet height from floor: set the valve/handle height to your fire consultant's specification — see our mounting-height guide. Installation details and plan symbols are in the CAD pack. |
Recess-type cabinets ship with a separate trim frame; we cut the frame to your finished-wall thickness.
SOKEI is a fire hose cabinet manufacturer in Jiangsu, China, building fire cabinets since 2010. Straight from the workshop capability sheet — so your consultant knows what is possible before drawing. If a spec is outside these limits, tell us; we will say so plainly.
No hidden steps — this is how an order runs from your first message to the container.
Factory-direct FOB Xiamen pricing within 24 hours from your spec, BOQ or drawing. Wholesale tiers for distributors; project quantities welcome.
Build one cabinet to your drawing in about 7 working days (special sheet materials take longer). Sample cost is borne by the buyer and credited against the first order on request — samples are not free.
Approve the sample, then release the batch. Material certificates, ISO 9001 quality records and EN 60529 enclosure test documents ship with every order.
RAL 3000 red and white in stock; any other RAL colour from 300 pcs. Free OEM branding: your logo, labels and signage at no tooling cost.
Knocked-down or assembled, in export cartons or crates with corner and glass protection; container mix across models is fine.
Sea freight to Manila, Cebu, Davao or your named port, FOB Xiamen (60 km from our base). Lead time is confirmed on the quotation.
Real photos from our three production bases — laser cutting, CNC bending, welding, powder coating, glass-door assembly and export packing. This is the factory that will build your cabinets.
Everything a consultant or purchaser needs to put our cabinet into a submittal. The Philippine standard-size drawing pack is online below — eight sheets as PDF plus the same drawings as AutoCAD DXF, free and with no sign-up. CAD blocks for plan layouts and Revit families are sent within one working day on request.
There is no single price — cost follows steel grade and thickness (1.0–1.2 mm typical), size, door style (solid, glass or framed), powder coat versus stainless, whether hose and valve are included, and quantity. A standard single-door powder-coated cabinet is a fraction of a stainless combination unit. Send your spec or BOQ and we return an FOB Xiamen quote within 24 hours with wholesale tiers.
In the Philippines the common fire hose cabinet size is 32 × 27 × 7 in (about 813 × 686 × 178 mm) for a 100 ft hose and 24 × 27 × 7 in (about 610 × 686 × 178 mm) for 50 ft — local suppliers list them in inches, consultants' drawings carry the same sizes in mm. No fire hose cabinet standard size is written into RA 9514; the cabinet follows the hose length, the rack or reel and the valve. We build those Philippine sizes as well as our pictured standards — 800 × 650 × 240 mm single-door with aluminium trim frame and 1800 × 700 × 240 mm floor-standing combination — and anything else to your drawing.
Recess type sits inside the wall with a trim frame and needs a rough opening about 20 mm larger than the cabinet, plus wall depth to clear the box; it gives a flush look in lobbies and corridors. Surface type mounts on the wall face with no opening — quicker for retrofits, parking levels and industrial floors. Semi-recess covers thin partition walls.
Typically the cabinet, a 1.5-inch × 50 ft or 100 ft hose (single or double jacket), a 1.5-inch angle valve, a spray nozzle and a hose rack or swing reel; a portable extinguisher, fire axe, spanner and signage are optional. We supply the cabinet from our own line and source the matched accessories on request, or ship empty cabinets to your BOQ.
We manufacture to your project's specification, which your fire consultant aligns with RA 9514 and the NFPA standards it references (for example NFPA 14 for standpipe and hose systems, Class I / II / III). Fire hose cabinet signage requirements — door lettering, stickers or labels — are met with the layout your consultant approves. We supply material certificates, ISO 9001 quality records and third-party EN 60529 enclosure test documents to support BFP acceptance. We do not claim UL or FM listings.
Locations follow the standpipe layout in your approved fire-protection drawings — typically at stairwell landings and along corridors so the hose reaches every point on the floor. The installation height (height from floor) is set so the valve and hose are reachable by an occupant; your consultant confirms the exact figure for the project. Our mounting-height guide explains the common practice and the installation details.
Yes — as a factory-direct fire hose cabinet supplier in the Philippines market we offer free OEM: your logo, colours, labels and packaging with no tooling fee. We already produce hose cabinets, extinguisher cabinets and hydrant boxes under distributors' own brands. Shipping is FOB Xiamen with sea freight to Manila, Cebu, Davao or your named port; cabinets go knocked-down or assembled in export cartons or crates.
Yes. Spare parts — replacement glass, keys, locks, hinges and door signage — are supplied for our cabinets and, on request, for existing installations. On pricing: the fire hose cabinet price Philippines buyers see from us is a factory FOB price, not a distributor list price — it moves with size, steel grade, door type and whether the hose set is included; the datasheet lists the models, and a BOQ gets you a line-by-line quote within 24 hours.
Also searched as: fire fighting cabinet Philippines · fire fighting equipment cabinet · FHC cabinet · fire hose box · fire hose rack cabinet · fire hydrant cabinet · fire hose cabinet with complete accessories · fire hose cabinet supplier Philippines
Send drawings, a BOQ or just quantities — our export team replies with a factory-direct FOB quote within 24 hours.
