Factory-direct cabinets for Australian and New Zealand fire protection contractors: hose reel cabinets sized around AS/NZS 1221 reels, and hydrant booster cabinets built to the sizes and siting rules of AS 2419.1. Zincanneal signal red or stainless for coastal sites, single or double door, surface, recessed with architrave, or free-standing on legs, with the 003-series lockable handle installers expect.
Australian standards govern the equipment and the installation, not the sheet-metal box. AS/NZS 1221 covers the hose reel, AS 2441 its installation, AS 2419.1 hydrant systems including where a booster must sit, and AS 1851 the routine service. ActivFire listing attaches to the reel and the valves inside. We build cabinets that suit those listed components and say plainly that the cabinet itself carries no ActivFire listing.
A 19 mm hose reel of 18, 25, 30 or 36 m sets the cabinet. Give us the reel make and drum diameter and we size the box, the stiffener and the swing clearance around it.
The booster must be weatherproof, corrosion resistant, preferably in the building façade within 20 m of the main pedestrian entrance (or at the main vehicle entry, in view of that entrance), with at least 100 mm clearance around handwheels and room for the identification signage and block plan. Those rules drive the cabinet size, not a published dimension.
Cabinet identification and the annual service routine. We supply cabinets with the door lettering and block-plan holder your fire engineer specifies, and material certificates for the service file.
Hose reel cabinets are sized around the reel; booster cabinets around the assembly and the clearances AS 2419.1 requires. All are made to order, so a non-standard size costs nothing extra in tooling.
The two things Australian contractors buy from us. The hose reel cabinet is sized around an AS/NZS 1221 reel; the booster cabinet is built to the footprint your hydraulic consultant has drawn, with the cut-outs and signage to match.

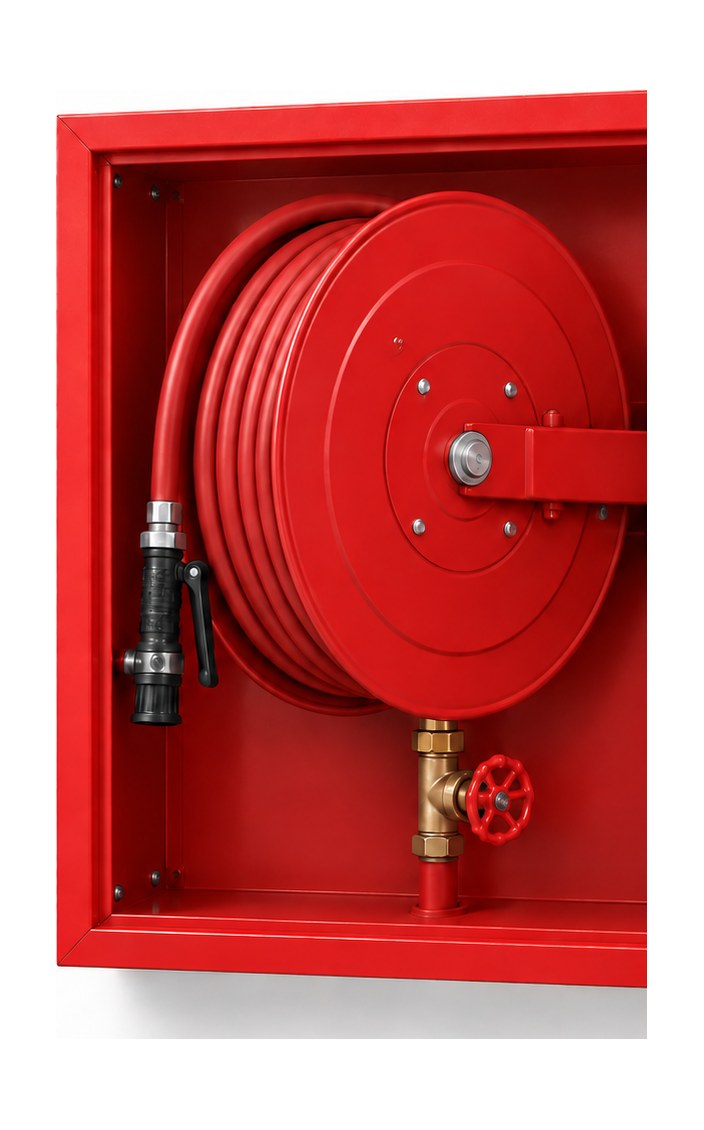

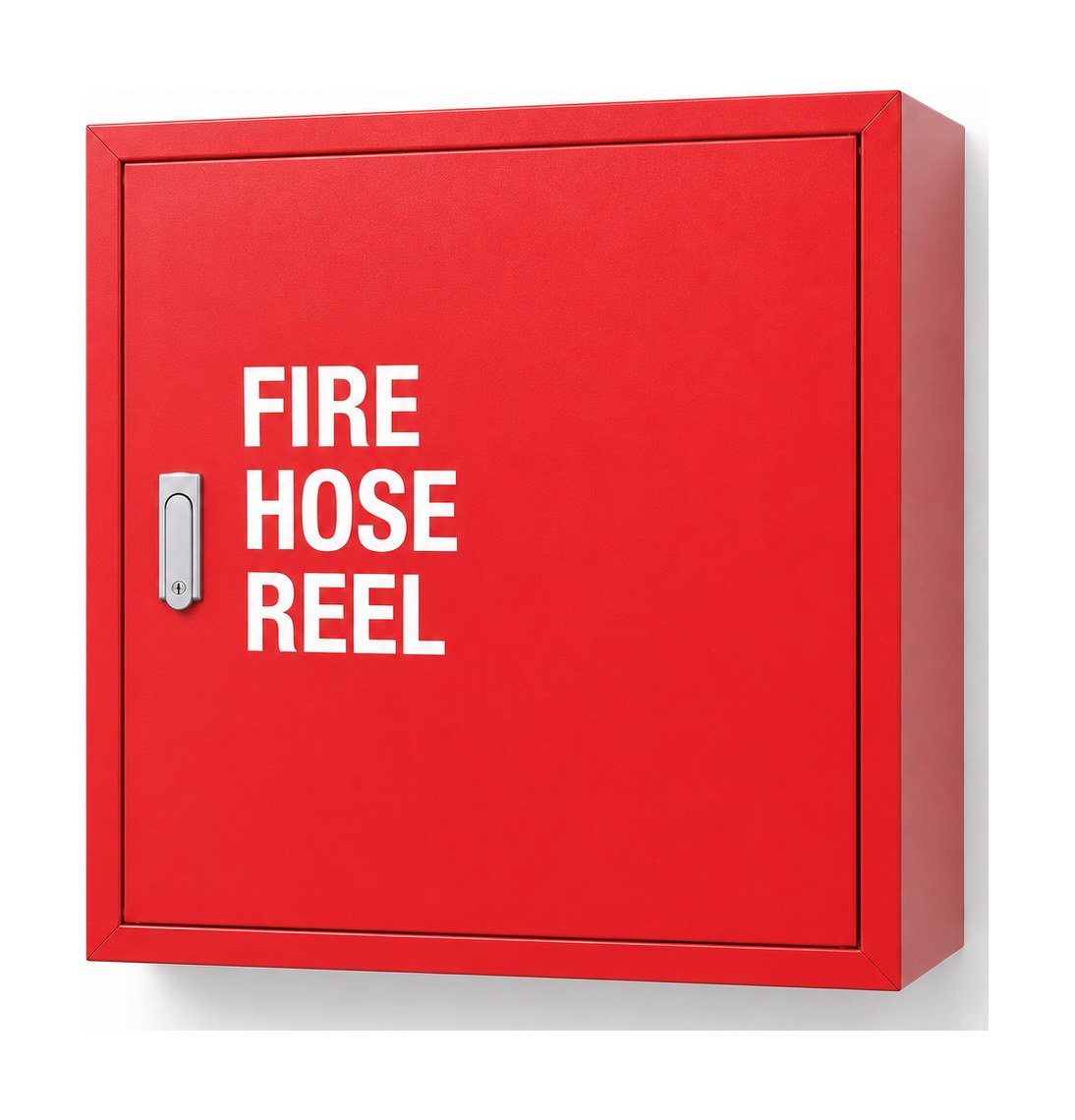

Signal red zincanneal, solid door, vertical FIRE HOSE REEL lettering and a lockable flush pull. Inside view shows it as delivered: red swing-arm reel with 19 mm rubber hose, shut-off nozzle and the inlet valve below. Surface, recessed with architrave, or free-standing on legs; stainless for coastal sites.
Wide floor-standing enclosure on steel feet for the booster assembly — 2-door 2100 × 850 × 1500 mm, 3-door 2900 × 800 × 1500 mm, or built to your drawing. Cut-outs for Storz couplings, gauge and block-plan holder; door signage to the wording your fire engineer specifies. We build the cabinet; the assembly is yours or your nominated maker’s.
| Model | Configuration | Size / wall cut-out (mm) | Mounting | Material | Notes |
|---|---|---|---|---|---|
| HR-R | Single hose reel, recessed with architrave | Body 1000 × 840 × 250 (H × W × D), door flush with the wall; NZ cut wall 640 × 675 × 270 (W × H × D) | Recessed | 0.9 mm zincanneal or 1.2 mm zincseal, signal red | Architrave surround covers the opening; 45 mm riser available |
| HR-S | Single hose reel, surface mounted | 1000 × 760 × 370 or 1050 × 840 × 320 (H × W × D) — the two common bodies for a 36 m reel | Surface | 0.9 mm zincanneal, 1.2 mm zincseal or SS 304 | For plant rooms, car parks and external walls |
| HR-L | Hose reel cabinet on legs, free-standing | 1050 × 840 × 320 body on 800 mm legs — 1850 mm overall | Free-standing | 1.2–1.5 mm zincanneal or zincseal | Where there is no wall — yards, open floor plates |
| HR-D | Double door: hose reel + extinguisher | Two compartments, each door lockable | Surface or recessed | 1.2 mm zincanneal or SS 304 | Not the local norm; built where the specification asks |

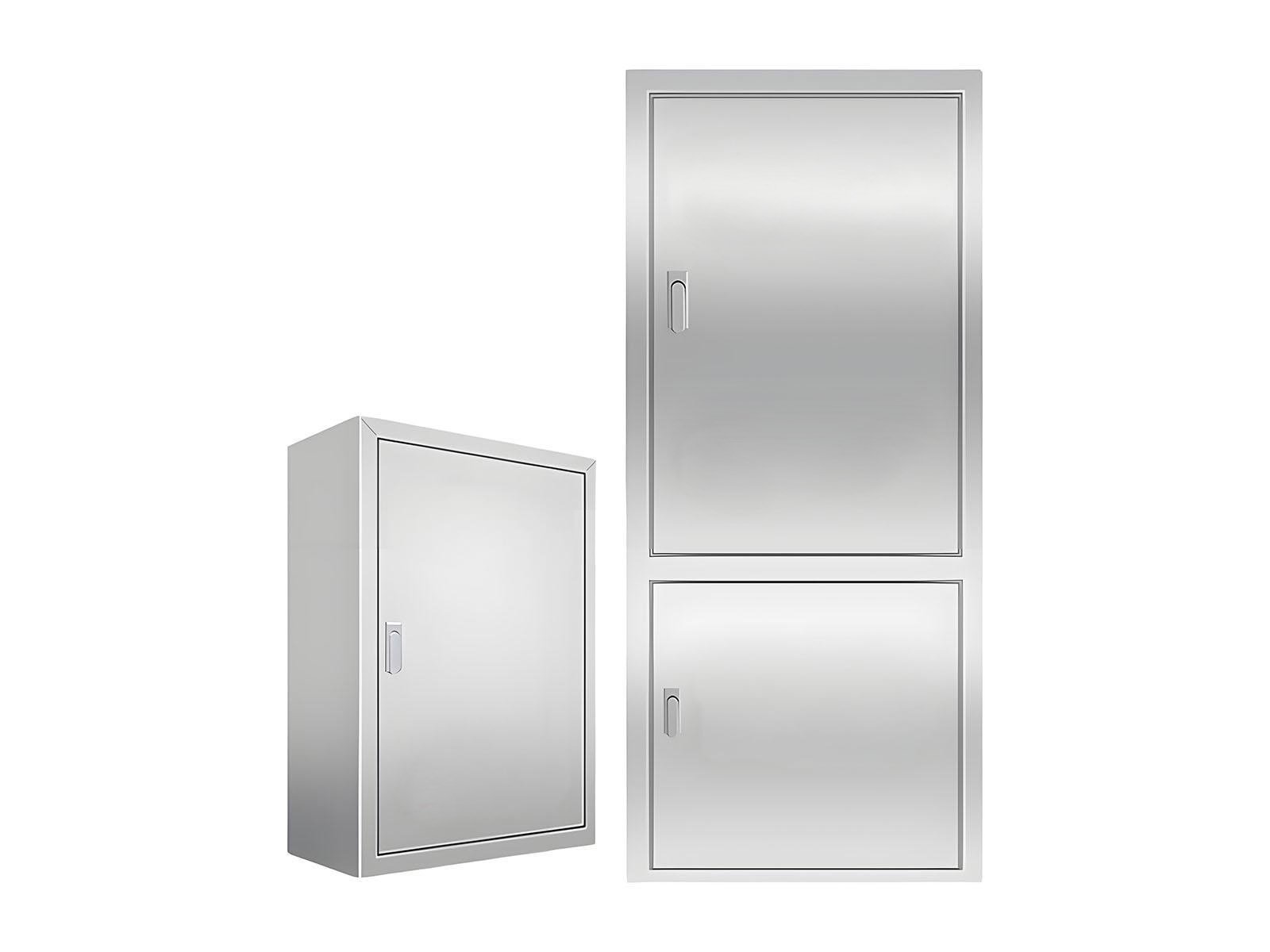

| HR-C | Coastal / marine specification | Any of the above | Any | SUS 304 or 316 brushed | For beachfront, marina and processing plant |
Options installers ask for: 003-series lockable lever handle, break-glass key holder, hose reel stiffener, 45 mm riser, retrofit back cut-out for an existing pipe drop, and decor colours other than signal red. Tell us the reel model and we build the box around it.
| Model | Doors | Size L × W × H (mm) | Typically houses | Notes |
|---|---|---|---|---|

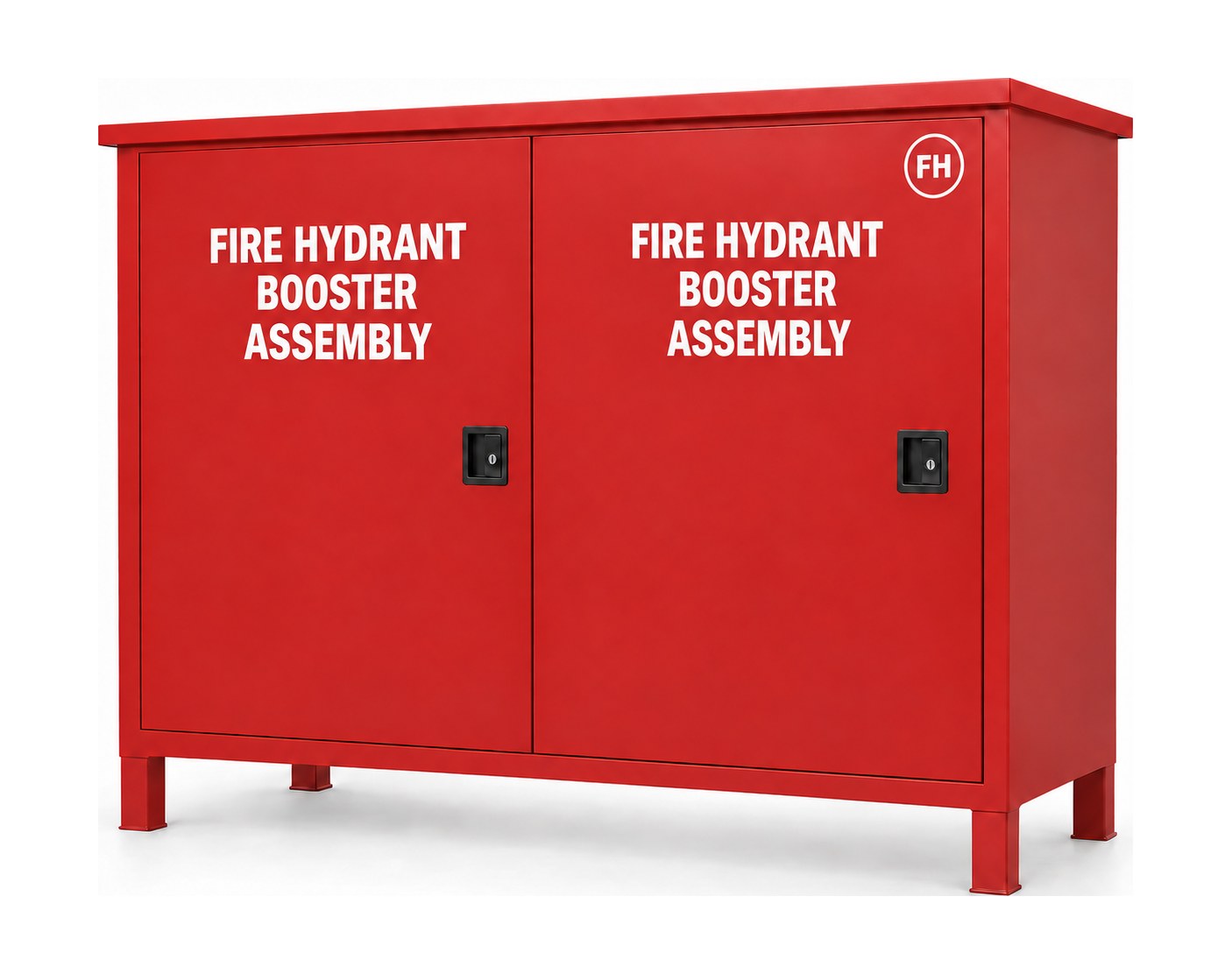

| BC-2100 | 2 | 2100 × 850 × 1500 | Booster assembly, isolation and non-return valves, pumper inlets | The common size for a standard booster assembly |

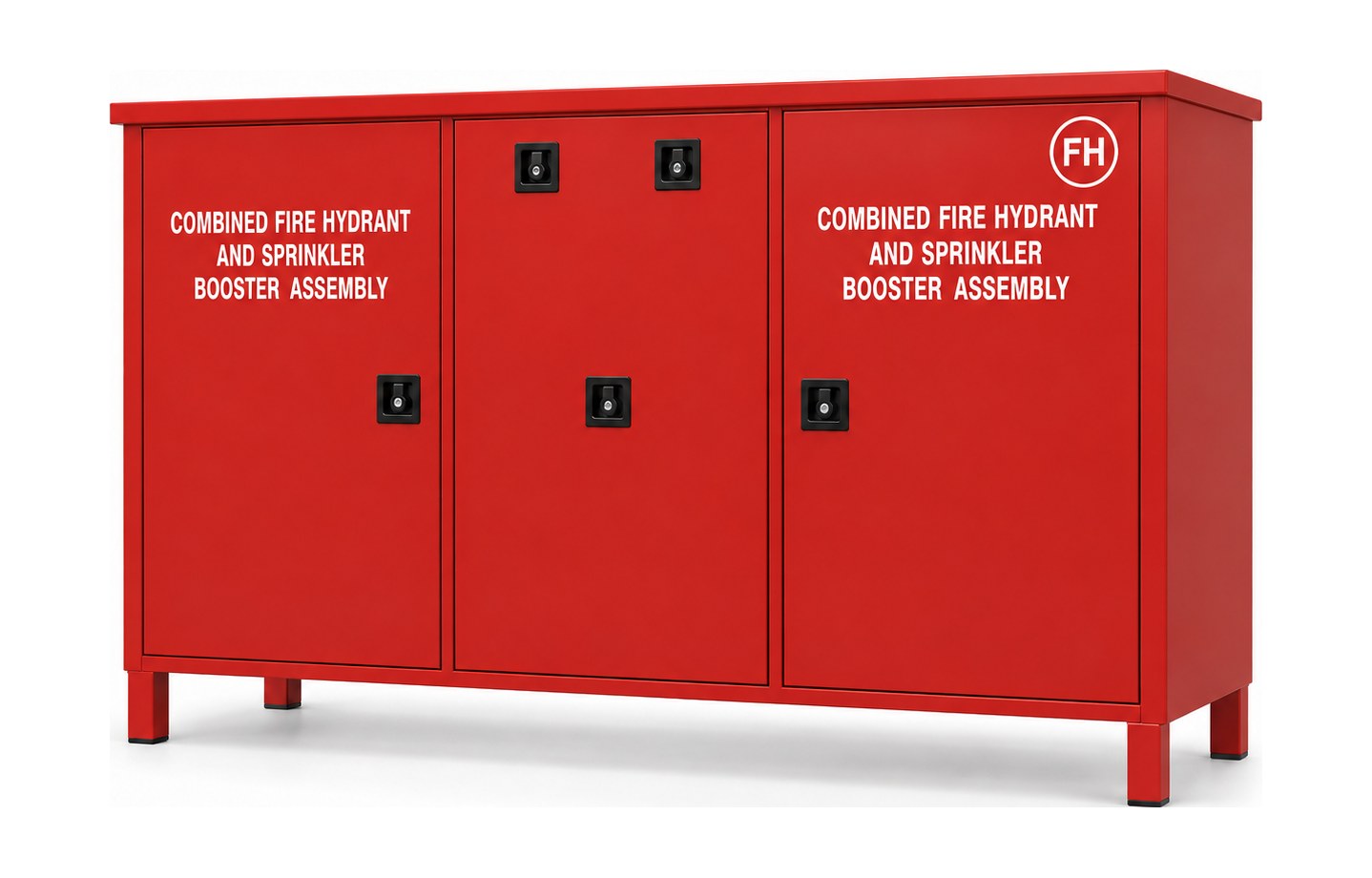

| BC-2900 | 3 | 2900 × 800 × 1500 | Larger assembly, additional inlets or a suction connection | Where the assembly or the pipework will not fit a 2-door body |
| BC-CUSTOM | 2, 3 or more | To your drawing | Whatever your hydraulic consultant has drawn | Cut-outs for Storz couplings, gauge, block plan holder and signage |
We manufacture the cabinet. The booster assembly — forged Storz adaptors, isolation valves, non-return valves, H-pattern pipework and pumper inlets — is supplied and installed by you or your nominated maker. Cabinets ship with the cut-outs, the block-plan holder and the door signage your drawing shows, weatherproof and corrosion protected.
Parts of a hose reel cabinet: body, door and frame, lever handle and lock, hinges, reel bracket and stiffener, riser, drip lip, architrave (recessed), lettering. Replacement handles, locks and keys are supplied for our cabinets.
| Recessed with architrave | Body in the wall, door flush with the face and an architrave over the opening — about 1000 × 840 × 250 mm (H × W × D). In New Zealand an AS/NZS 1221 recess takes a 640 × 675 × 270 mm cut wall. Give us the wall build-up and we cut the architrave to suit. |
| Surface mounted | Full body on the wall face, no opening. The default for plant rooms, car parks and external walls. |
| Free-standing on legs | Cabinet on a fabricated stand where there is no wall — open floor plates, yards, and hydrant points in the landscape. |
| Booster cabinet siting | AS 2419.1 prefers the booster in the building façade within 20 m of the main pedestrian entrance; a booster away from the building sits at the main vehicle entry on the boundary, in view of that entrance. Inlets 750–1200 mm above ground, at least 100 mm clear around handwheels. Your fire engineer sets the position; we build to the footprint. |
For coastal and marine sites we recommend SUS 316 with stainless fixings; salt spray will find a powder-coated edge within a few seasons.
Straight from the workshop capability sheet. If a specification falls outside these limits we will tell you rather than quote it.
We supply Australian and New Zealand fire protection contractors and wholesalers on an OEM basis, FOB from our port. Booster cabinets are quoted per drawing; hose reel cabinets per model and quantity.
FOB pricing within 24 hours from your drawing, schedule or model list. Tiered by quantity.
One cabinet built to your drawing in about 7 working days. Sample cost is borne by the buyer and credited against the first order on request.
Free OEM: your brand, colour, lettering and packaging with no tooling fee — the usual route for Australian wholesalers.
Material certificates, ISO 9001 records and third-party EN 60529 enclosure test reports. The cabinet carries no ActivFire listing and we do not claim one.
Booster cabinets ship assembled or in flat-pack sections; hose reel cabinets knocked-down or assembled, all with corner protection.
Sea freight to Sydney, Melbourne, Brisbane, Fremantle, Auckland or your named port, FOB Xiamen.
Laser cutting, CNC bending, welding, powder coating and export packing across three production bases — including bodies up to 3,000 mm for booster cabinets.
Datasheet and the Australian standard-size drawing pack are online below — eight sheets as PDF plus the same drawings as AutoCAD DXF, free and with no sign-up. CAD blocks for your hydraulic drawings and Revit families are sent within one working day on request.
The two common surface bodies for a 36 m AS/NZS 1221 reel are 1000 × 760 × 370 mm and 1050 × 840 × 320 mm (H × W × D); a recessed body is about 1000 × 840 × 250 mm, and the 840-wide cabinet on 800 mm legs stands 1850 mm overall. In New Zealand an AS/NZS 1221 recess takes a 640 × 675 × 270 mm cut wall (W × H × D). The reel drum sets the size, so the exact figure follows the reel you specify — an 18 m reel needs less depth than a 36 m one. Send the reel datasheet and we build the box around it.
The common sizes are a 2-door cabinet at 2100 × 850 × 1500 mm and a 3-door cabinet at 2900 × 800 × 1500 mm, both length × width × height. Anything else is built to your hydraulic consultant’s drawing — we cut the Storz, gauge and block-plan openings to match.
The assembly is the hardware: Storz adaptors, isolation valves, non-return valves, H-pattern pipework and the pumper inlets. The cabinet is the weatherproof, tamper-resistant enclosure around it. We manufacture cabinets; the assembly comes from you or your nominated maker.
Preferably in the building façade within 20 m of the main pedestrian entrance; a booster away from the building goes at the main vehicle entry on the boundary, where it can be seen from that entrance. It must be weatherproof and corrosion resistant, with identification signage and a block plan showing hydrant locations, and at least 100 mm clearance around the handwheels. Your fire engineer confirms the position and the signage wording for the project.
No. ActivFire listing attaches to the hose reel, the valves and the assembly inside — not to the sheet-metal enclosure. We supply material certificates, ISO 9001 records and third-party EN 60529 enclosure test reports, and we will not claim a listing we do not hold.
Yes — the 003-series lockable lever handle is our standard for Australian orders, keyed alike across a site on request, with a break-glass key holder beside it. Cam locks and padlock hasps are also available.
Yes — SUS 304 for general coastal exposure and SUS 316 for beachfront, marina and processing plant, with stainless fixings. Powder-coated steel will chalk and then rust at the edges in salt spray, so for anything within sight of the water we recommend stainless.
Yes — free OEM: your brand, colour, lettering and packaging with no tooling fee. Send a schedule or drawing set and we quote FOB with tiered pricing; mixed containers of hose reel and booster cabinets are fine.
