Factory-direct MS hose box — also called fire hose box, hydrant hose box or fire hose cabinet — in the single door and double door sizes Indian projects and dealers order. 16 or 18 SWG mild steel powder-coated red, SS 304 or FRP on request, open-back or closed-back, supplied empty to your BOQ or with RRL hose, branch pipe and hydrant key.
Indian hydrant systems are designed to IS 3844 for internal hydrants and hose reels and IS 13039 for external hydrant mains, with landing valves to IS 5290 and RRL hose to IS 636. None of those standards publishes a box size — the hose box is the housing, and the sizes below are what the market has settled on. We build to them, and to any size your BOQ states.
Landing valves on each floor landing, usually one 15 m length of hose per point. A single door hose box is the usual housing — compact enough for a stair lobby, deep enough for a coiled RRL hose and branch pipe.
Yard hydrants spaced along the main, each with two lengths of hose and a branch pipe stored beside it. That is where the double door hose box is used — more volume, two doors, weather-sealed.
The landing valve (63 mm instantaneous outlet) and the RRL hose are separate certified items. We make the box; your BOQ or your usual supplier provides the valve and hose, or we source them as matched accessories.
Hose box size in India is quoted both in millimetres and in inches. These are the sizes dealers and contractors ask for; every one is made to order, so a non-standard BOQ dimension costs no more in tooling.

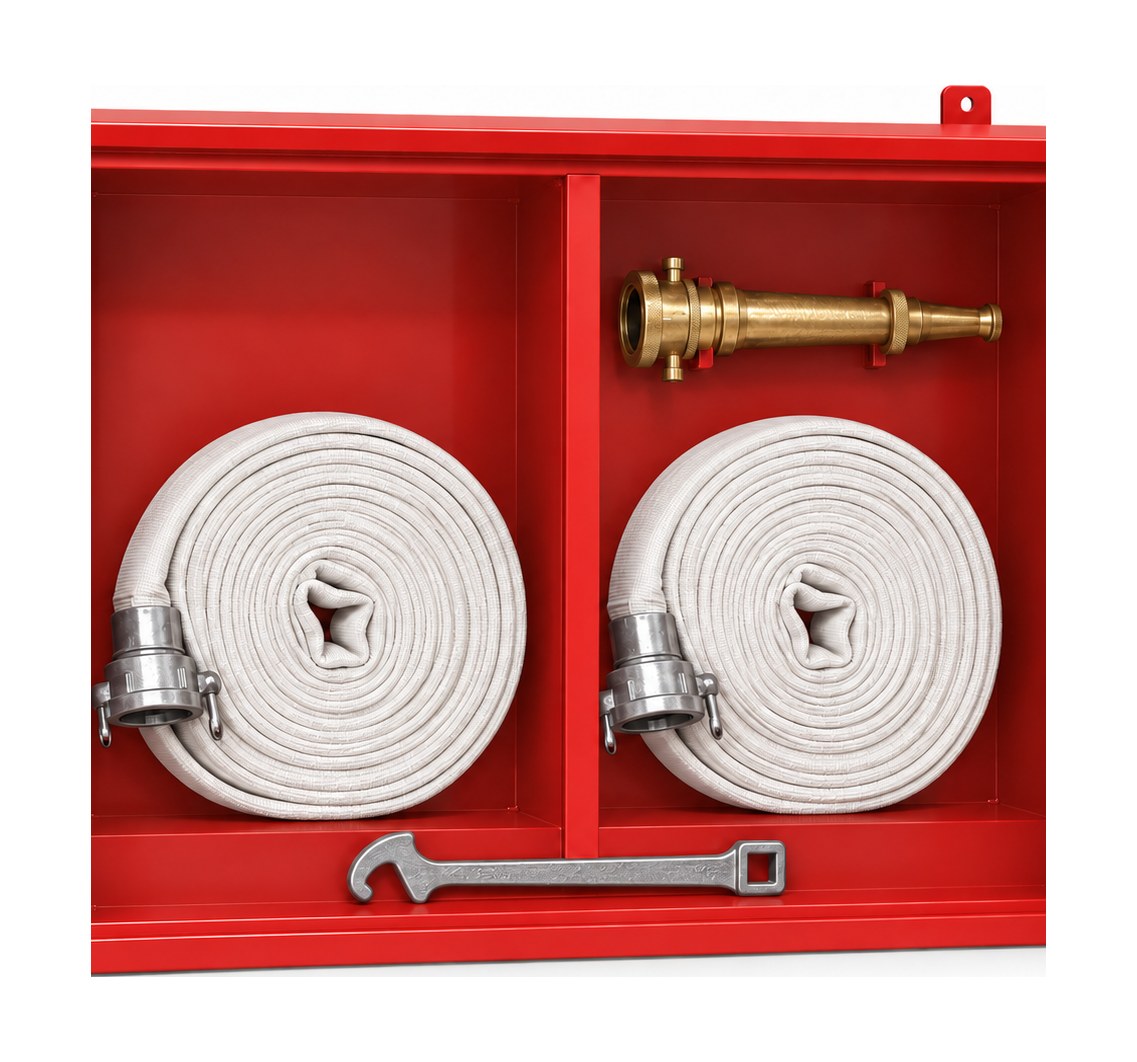

Both built on the same line, in mild steel or stainless. The inside view shows the double door box as it ships when you order it complete: two 15 m × 63 mm RRL hoses, a branch pipe and a hydrant spanner.

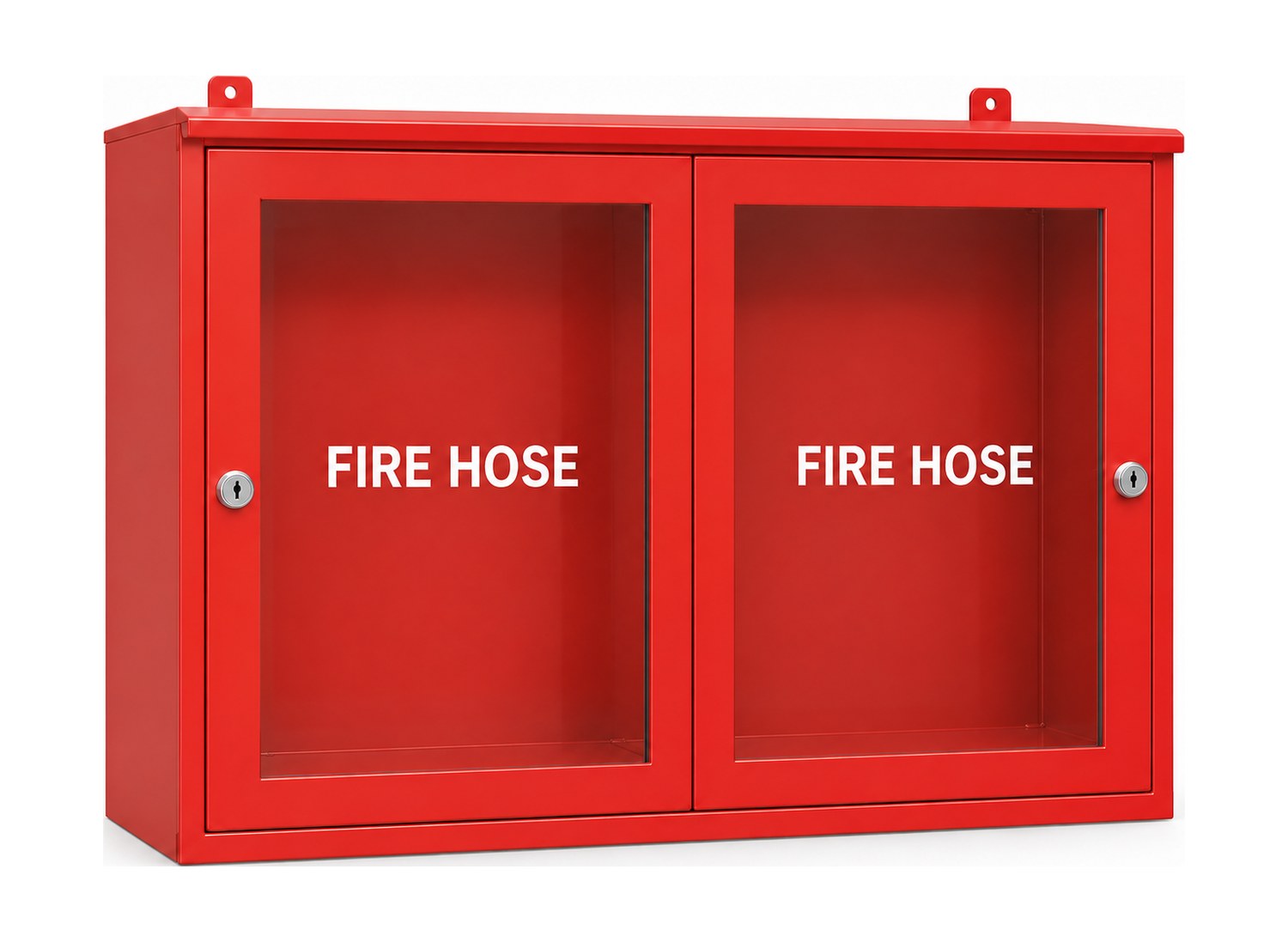

The standard Indian double door hose box — 750 mm wide × 600 mm high × 250 mm deep, two doors side by side, clear glass in a steel frame, key-operated round cam latch on each door, drip lip on top and wall mounting lugs. Holds two 15 m × 63 mm RRL hoses with a branch pipe. Made in 16 or 18 SWG mild steel, or SUS 304.

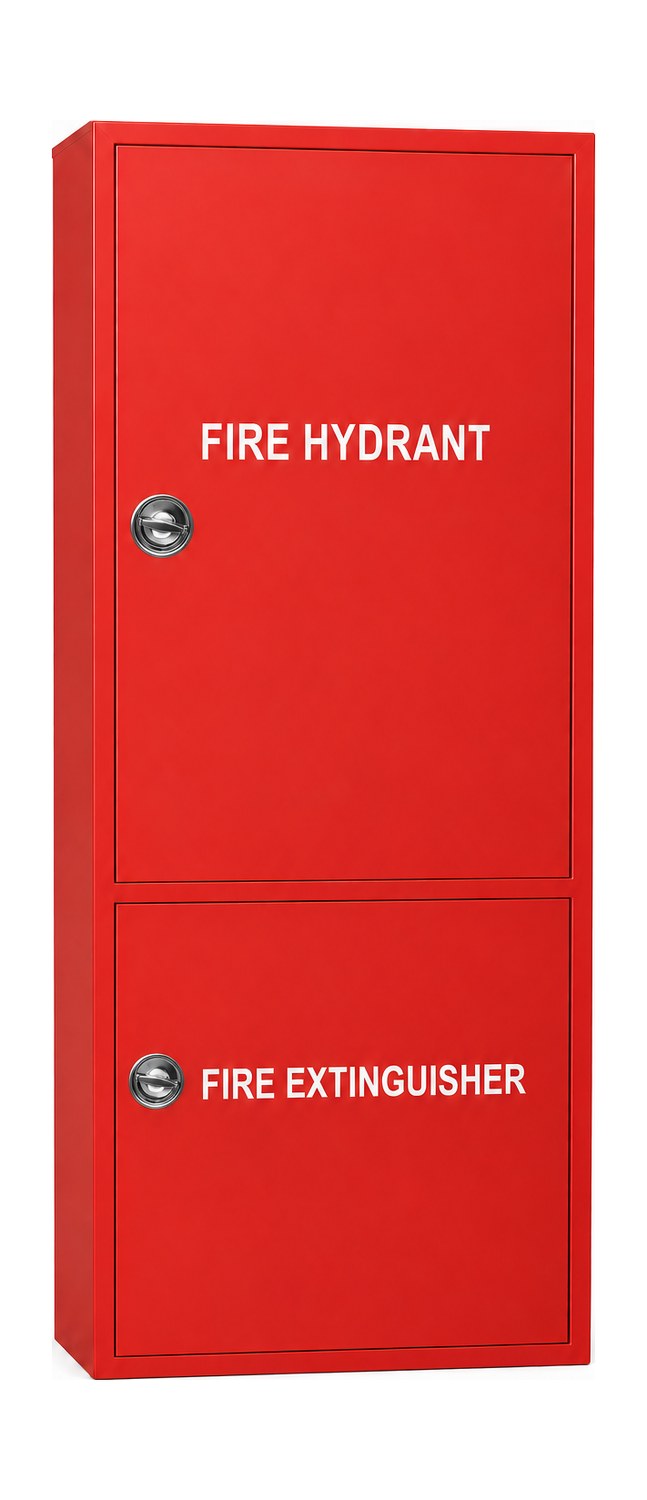

Where the hydrant point also carries a portable extinguisher: one tall body, two solid steel doors, each with its own key-operated cam lock and white lettering. Popular on external hydrant points and in industrial plants where the equipment has to stay out of sight and out of the weather. Made to your height and width.
| Model | Configuration | Size H × W × D (mm) | In inches | Sheet | Typically holds |
|---|---|---|---|---|---|
| HB-S45 | Single door hose box — the size most Indian projects order | 600 × 450 × 250 | 24 × 18 × 10 | 18 SWG (1.2 mm) | One 30 m × 63 mm RRL hose with couplings, branch pipe, hydrant key |
| HB-S50 | Compact single door hose box | 500 × 500 × 250 | 20 × 20 × 10 | 18 SWG (1.2 mm) | One 15 m hose length, or a nozzle and key set at a hose reel point |
| HB-S60 | Square single door hose box | 600 × 600 × 250 | 24 × 24 × 10 | 18 SWG (1.2 mm) | Specified on some projects where the hydrant point has more kit; less common than 600 × 450 |
| HB-D75 | Double door hose box, horizontal — the Indian standard | 600 × 750 × 250 | 24 × 30 × 10 | 16 SWG (1.5 mm) | Two 30 m × 63 mm RRL hoses, branch pipe, hydrant key |
| HB-D75L | Double door, horizontal, light gauge | 600 × 750 × 250 | 24 × 30 × 10 | 18 SWG (1.2 mm) | Same box in a lighter sheet for internal landings where knocks are less likely |
| HB-D90 | Double door, horizontal, large | 600 × 900 × 250 | 24 × 36 × 10 | 16 SWG (1.5 mm) | Two hoses plus branch pipe and spanner set |
| Custom | To your BOQ | Any size up to 3,000 mm | — | 0.8–2.0 mm | Whatever the drawing specifies — no tooling charge |
Fire hose box sizes above are the market sizes, not a clause in any IS code. Note the orientation: the double door hose box is wider than it is tall — two doors side by side, 750 mm across and 600 mm high — while the single door box is square. SWG conversion: 16 SWG ≈ 1.5 mm, 18 SWG ≈ 1.2 mm. Doors: clear glass in a steel frame is the usual Indian specification, with a key-operated round cam latch; solid steel doors and padlock hasps are also made. Lettering “FIRE HOSE” or “HOSE BOX” in white on fire red, your dealer branding on request.
| Option | What we supply | Why it matters |
|---|---|---|
| Material | Mild steel powder-coated red; SUS 304 / 316 stainless; galvanised steel | Stainless for coastal plants and chemical yards; MS for general projects |
| Sheet thickness | 16 SWG (1.5 mm) and 18 SWG (1.2 mm) as standard; 0.8–2.0 mm to your spec. We do not make 22 SWG. | Much of what is sold cheaply in India is 22 SWG (about 0.7 mm) — it dents on site and rusts through at the fold. Our lightest sheet is 18 SWG. If your BOQ says 22 SWG, we will quote 18 SWG and tell you the difference in weight. |
| Open-back / closed-back | Open-back sits over an existing wall-mounted landing valve; closed-back is a fully enclosed box | Ask your site which one the hydrant point needs before ordering |
| Door and lock | Single or double; clear glass in a steel frame with a key-operated round cam latch is the Indian norm; solid steel doors and padlock hasps also made | Double door boxes are horizontal, two doors side by side; glass so the hose is visible on inspection |
| Mounting | Wall mounted, recessed, or on a floor stand beside a yard hydrant | We supply the stand as a separate line if you need it |
| Contents | Empty box to your BOQ, or with RRL hose, branch pipe, nozzle and key | We manufacture the box and source matched accessories on request |
We do not publish per-piece retail prices — we quote batch FOB prices for dealers and contractors, with tiers by quantity. That is usually well below a per-piece marketplace price once you are ordering in dozens.
Most Indian orders are for the box alone — the hose, valve and branch pipe are bought locally or already in the BOQ. Parts of a hose box: body, door and frame, glass or glazed panel, hasp or lock, hinges, hose pegs, drip lip, back panel (or open back), lettering. Replacement glass, keys and locks are supplied for our boxes.
| Single door hose box | One compartment, 600 × 600 × 250 mm typical. Internal hydrant landings, stair lobbies, small plants — one hose length and a branch pipe. |
| Double door hose box | Two compartments or one wide body with two doors, 750 × 600 × 250 mm typical. External hydrant points where two hose lengths are stored. |
| Open-back type | No rear panel; the box mounts over a wall-mounted landing valve so the valve stays accessible. Ask before ordering — it cannot be added later. |
| Floor-standing on a stand | For yard hydrants with no wall. The box sits on a fabricated stand at working height, weather-sealed. |
Tell us the hydrant type (internal landing valve, external yard hydrant, or hose reel point) and we advise the size and back type before quoting.
Straight from the workshop capability sheet. We have been building fire cabinets in Jiangsu, China since 2010, and export to distributors across Asia.
We sell to dealers, fire contractors and industrial buyers by the batch, FOB from our port. No per-piece retail listing — the quantity sets the price.
FOB pricing within 24 hours from your BOQ, size list or drawing. Tiered by quantity, quoted per model.
Set per model on the quotation, not per item — a mixed container of single door and double door boxes is fine.
One hose box built to your drawing in about 7 working days. Sample cost is borne by the buyer and credited against the first order on request.
Free OEM: your brand, colour, lettering and packaging with no tooling fee. We already build under distributors’ own brands.

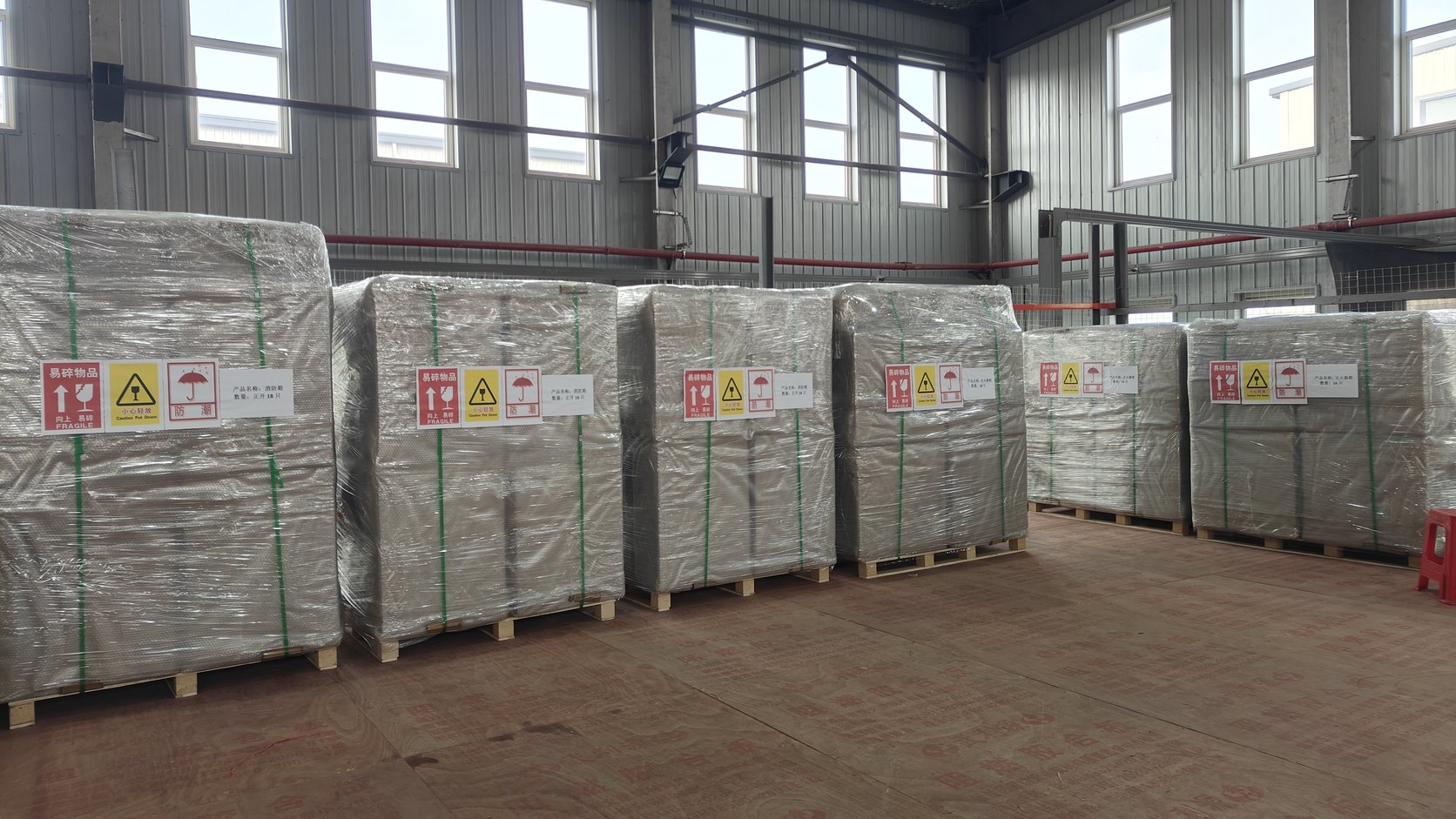

Knocked-down or assembled, in export cartons or crates with corner and glass protection.
Sea freight to Nhava Sheva, Mundra, Chennai, Kolkata or your named port, FOB Xiamen.

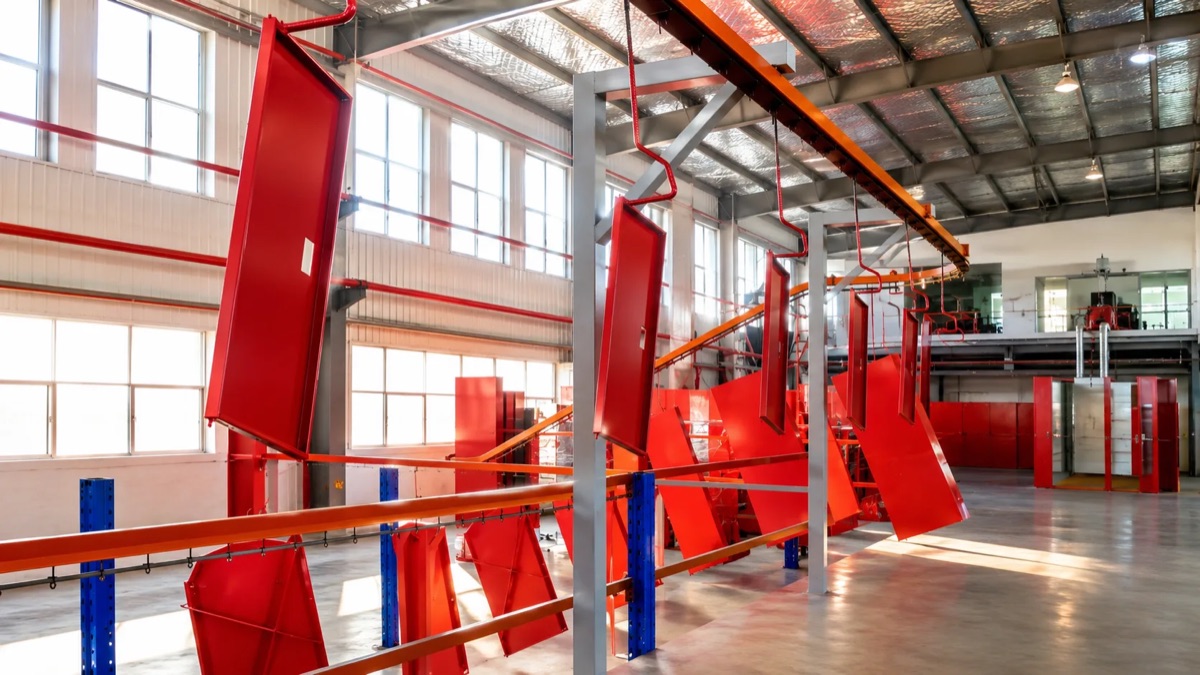

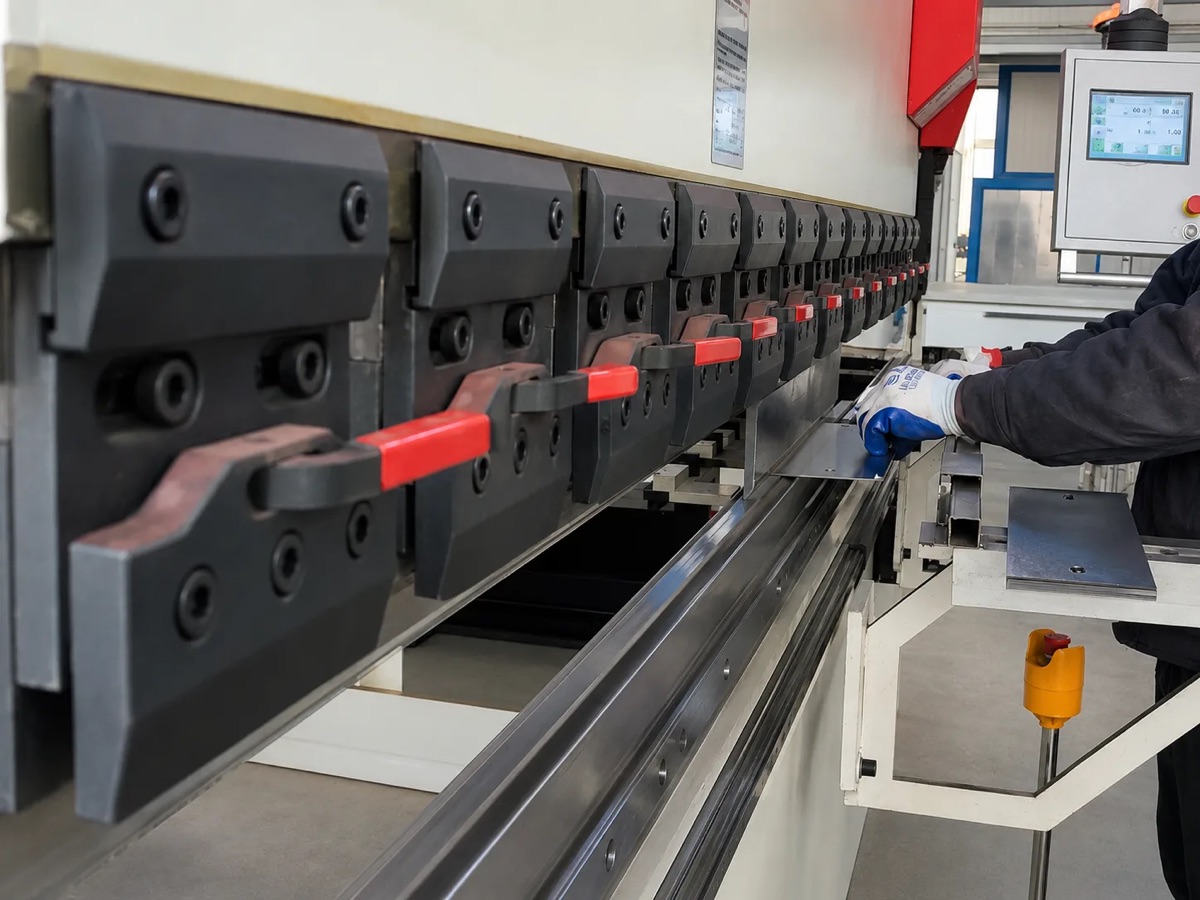

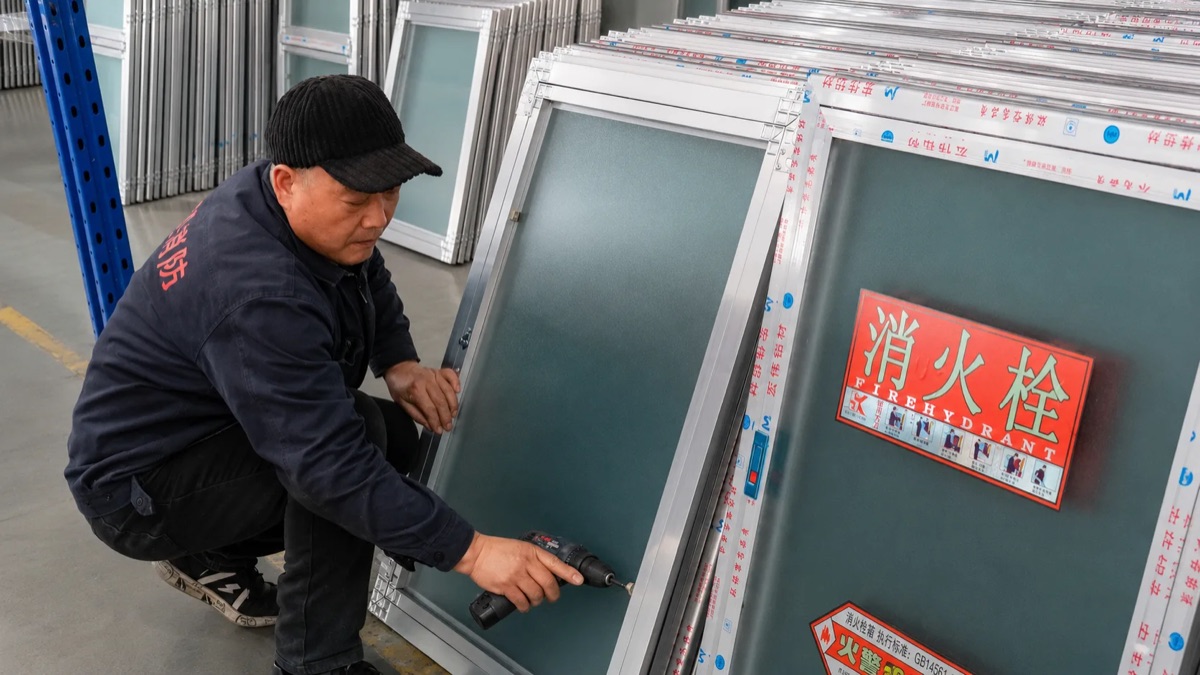

Laser cutting, CNC bending, welding, powder coating, glazing and export packing across three production bases. This is the factory that will build your hose boxes.
Everything a consultant, contractor or dealer needs to put our hose box into a submittal or a BOQ. The Indian standard-size drawing pack is online below — eight sheets as PDF plus the same drawings as AutoCAD DXF, free and with no sign-up. CAD blocks for plan layouts and Revit families are sent within one working day on request.
There is no size fixed by an IS code. In practice the single door hose box is 600 × 600 × 250 mm (24 × 24 × 10 in) and the double door hose box is 750 mm wide × 600 mm high × 250 mm deep (24 × 30 × 10 in as H × W × D) — wider than it is tall, with two doors side by side. Sizes of 500 × 500 × 200 mm and 900 mm wide are also common. The box follows the hose — one 15 m × 63 mm RRL length per compartment plus a branch pipe.
A single door box is roughly square, holds one hose length and a branch pipe, and is used at internal hydrant landings. A double door box is horizontal — 750 mm wide against 600 mm high — with two doors side by side, holding two hose lengths for external yard hydrants. Both are made in MS or stainless, wall mounted or on a stand, usually with clear glass doors and a key-operated cam latch.
An open-back hose box has no rear panel, so it can be mounted over a landing valve already fixed on the wall — the valve stays reachable through the back of the box. A closed-back box is fully enclosed and used where the hose is stored away from the valve. It cannot be changed after fabrication, so tell us which one the site needs.
Both. 18 SWG (about 1.2 mm) is the usual gauge for indoor hose boxes and 16 SWG (about 1.5 mm) for external hydrant points and industrial yards. We can go from 0.8 mm to 2.0 mm; heavier gauge costs more in material but takes site handling better.
Stainless yes — SUS 304 and 316, brushed or mirror finish, for coastal and chemical plants. FRP no: we are a sheet-metal factory, so we do not mould fibreglass boxes. If your BOQ calls for FRP we will say so rather than quote something we do not make.
We quote batch FOB prices to dealers, contractors and industrial buyers, tiered by quantity — not per-piece retail. The price moves with size, gauge, MS versus stainless, door type and whether hose and accessories are included. Send your BOQ and we return a line-by-line quotation within 24 hours.
Yes — free OEM. Your brand name, colour, lettering, instruction sticker and packaging, with no tooling fee. We already manufacture hose boxes and fire cabinets under distributors’ own brands in several markets.
Yes — fire bucket stands, sand boxes and equipment stands are made on the same line. Ask for the stands list with your hose box quotation and we price them together in one container.
