Factory-direct hose reel cabinets in the sizes Malaysian and Singapore M&E contractors specify — mild steel in red epoxy powder for Malaysian work, hairline stainless for Singapore lobbies. Single or double door, surface, recessed or with legs, plus the landing valve and breeching inlet cabinets that go with a wet riser. Built to house Bomba-certified and PSB-listed reels and valves.
In Malaysia the Uniform Building By-Laws 1984 require hose reel systems in most commercial and industrial buildings, with reels tested to MS 1489 and carrying a Bomba Sijil Perakuan Bahan. In Singapore the SCDF Fire Code Clause 6.2 governs rising main and hose reel systems, with reels listed under the TUV SUD PSB scheme to SS 575. Both schemes certify the reel and the valve. We build the cabinet that houses them.
Hose reel systems (salur bantu mula) are mandatory in most commercial and industrial buildings. The reel carries the Bomba material certificate; the cabinet is the sheet-metal housing around it, which is why we build to the sizes Malaysian manufacturers publish.
Clause 6.2 covers rising main and hose reel systems, and requires that hose reel cabinets are not locked. Reels are listed through TUV SUD PSB. Singapore projects lean to hairline stainless in lobbies and public areas.
We do not hold a Bomba Sijil Perakuan Bahan or a PSB listing for the cabinet, and neither scheme lists enclosures as far as we can establish. Specify a certified reel and valve; we supply the housing, with material certificates and EN 60529 enclosure test reports.
The cabinet sizes local manufacturers and suppliers publish, in millimetres H × W × D. Depth is the variable that matters most: it follows the reel drum and whether a swinging arm is fitted.
The same cabinet in the two finishes each market expects. Malaysian projects take red epoxy powder-coated mild steel; Singapore lobbies and public areas take hairline stainless with red lettering and the hose reel pictogram. Both carry the narrow vertical viewing window so the reel can be checked without opening the door.

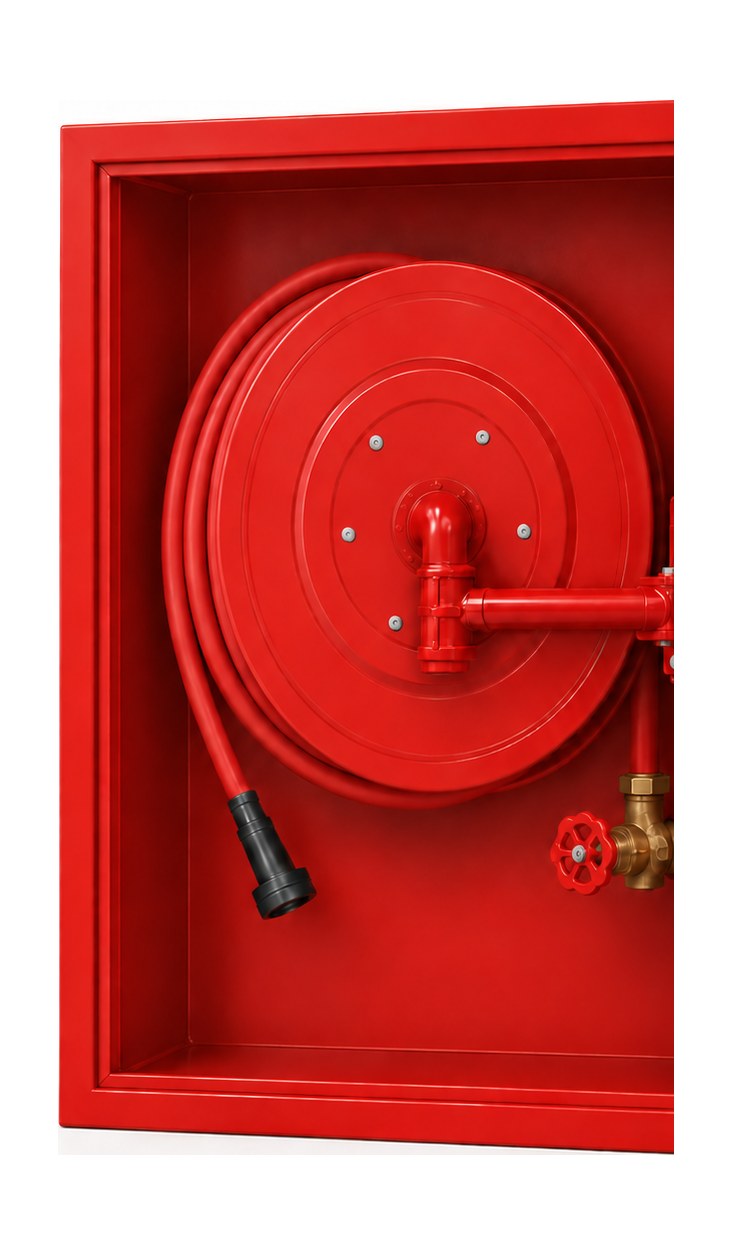

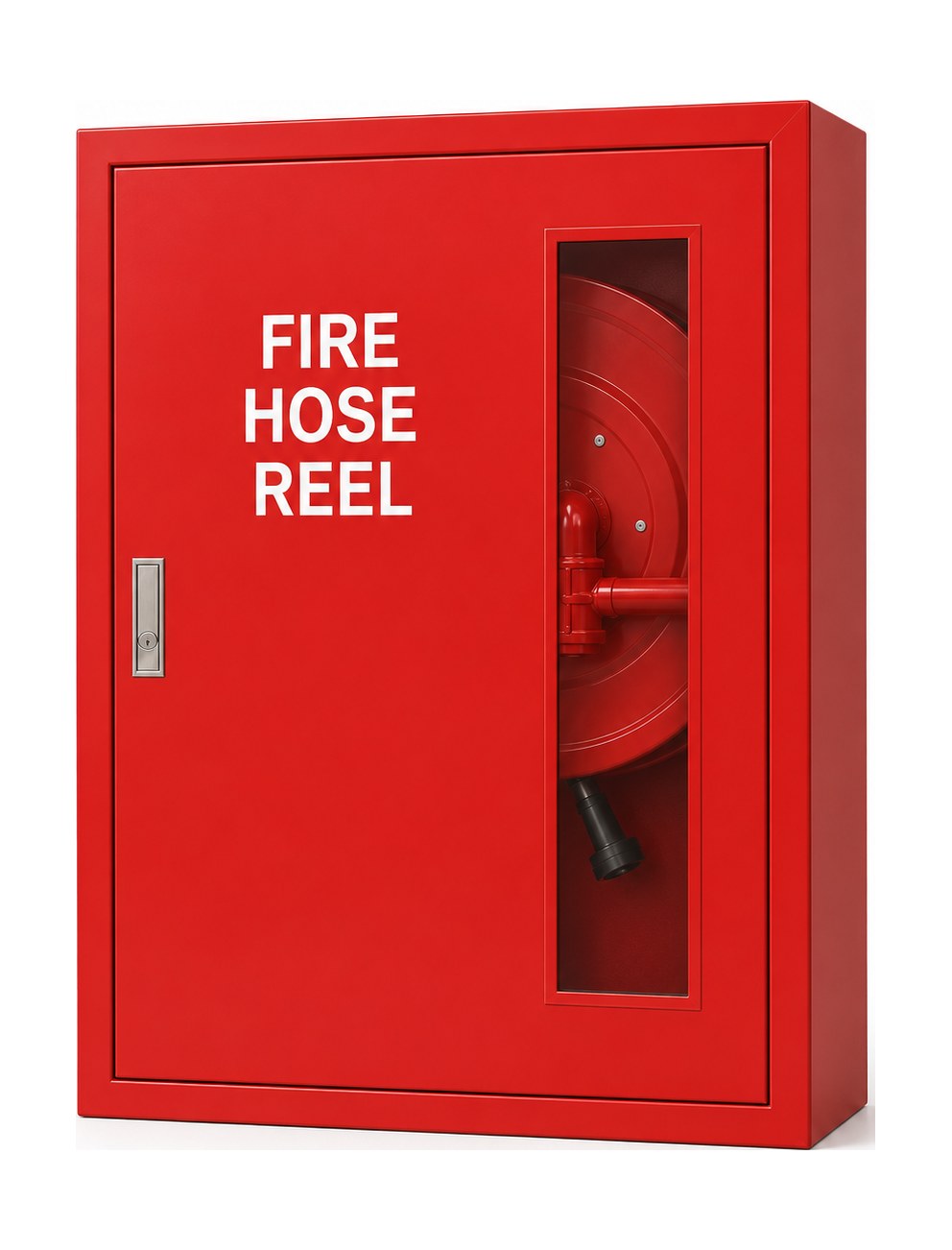

800 × 700 mm with a choice of 400, 320 or 250 mm depth, 1.2 mm mild steel, red epoxy powder coating 70 µm minimum. Vertical viewing window, white FIRE HOSE REEL lettering, lockable flush pull. Inside view shows it as delivered: 25 mm hose on a swing-arm reel with the inlet valve alongside. Surface, recessed or on legs.

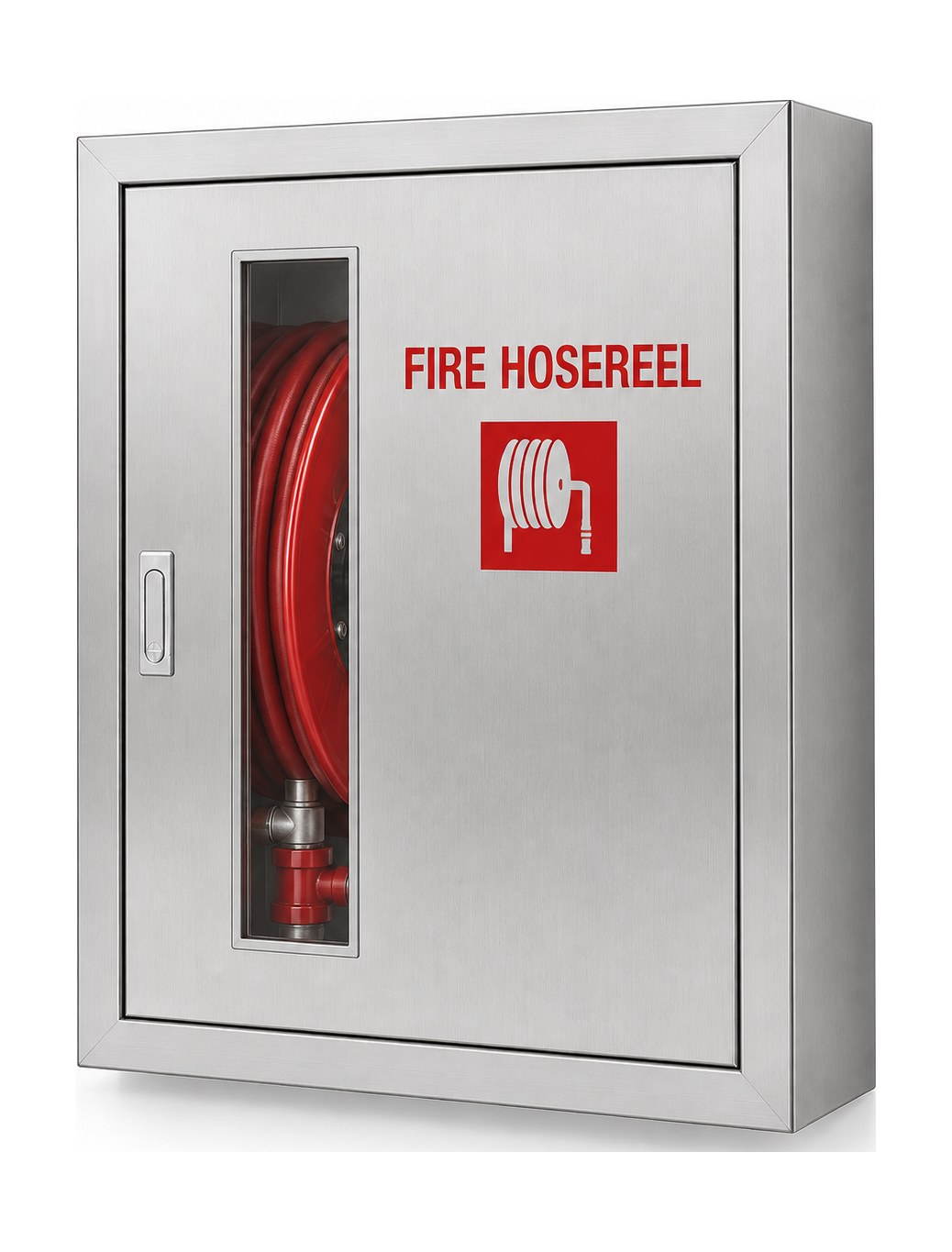

790 × 790 × 360 mm in SUS 304 or 316, 1.0–1.5 mm, hairline finish. Red FIRE HOSEREEL lettering with the hose reel pictogram, vertical viewing window, lockable flush pull. Supplied unlocked where the SCDF Fire Code requires it. 316 for coastal and industrial exposure.
| Model | Market & use | Size H × W × D (mm) | Material | Mounting | Notes |
|---|---|---|---|---|---|
| HRC-E | Malaysia, standard reel cabinet | 800 × 700 × 400 / 320 / 250 | MS 1.2 mm, red epoxy 70 µm | Surface or recessed | Three depth options for different drum sizes |
| HRC-F | Malaysia, compact reel cabinet | 720 × 760 × 200–230 | MS 0.9–1.2 mm, red epoxy | Surface or recessed | The compact family quoted alongside the 800 × 700; depth 200 for 19 mm hose, 230 for 25 mm |
| HRC-SG | Singapore, mild steel | 800 × 800 × 400 | MS 1.3 mm, red epoxy | Surface | The common Singapore mild-steel size |
| HRC-SS | Singapore, stainless | 790 × 790 × 360 | SS 304 or 316, 1.0–1.5 mm hairline | Surface or recessed | Lobby and public-area finish; 316 for coastal |
| HRC-D | Reel + fire extinguisher, double door | About 1600 × 800 × 300 | MS 1.0–1.2 mm or SS | Surface or recessed | Two compartments, each lockable |
| HRC-LEG | Hydrant hose cabinet c/w leg | 1170 × 560 × 330 | MS 1.2–1.5 mm | Free-standing on legs | Where there is no wall — yards and open plant |
A 610 × 545 × 170 mm cabinet is a different product — that is a lay-flat hose cabinet for 2.5 in hose and a nozzle, not a reel cabinet. Tell us the reel make and drum diameter and we confirm the depth before quoting.
| Model | What it houses | Size H × W × D (mm) | Material | Standard practice |
|---|---|---|---|---|
| BI-2 | 2-way breeching inlet | 595 × 395 × 295 | MS 0.9–1.2 mm, red epoxy | Built to BS 5041 Part 5 box dimensions; clear tempered glass door |
| BI-4 | 4-way breeching inlet | 595 × 595 × 295 | MS 0.9–1.2 mm, red epoxy | Recess mounted, glazed door, FIRE BREECHING INLET lettering |
| LV-1 | Landing valve, single | About 600 × 400 × 300 | Galvanised 1.0–1.2 mm or SS | Surface or recessed on the riser drop |
| Custom | Any inlet or valve arrangement | To your drawing | MS / SS 304 / 316 | Cut-outs, lettering and lock to your specification |
Breeching inlet and landing valve cabinets are enclosures. The inlet breeching and the landing valve are separately certified items — supply them yourself or nominate a maker and we fit them.
Parts of a hose reel cabinet: body, door and frame, glass panel, lock or latch, hinges, reel bracket, drip lip, legs, lettering. Replacement glass, keys and locks are supplied for our cabinets.
| Surface mounted | Full body on the wall face, no opening needed. The default for car parks, plant rooms and industrial walls in both markets. |
| Recessed | Body in the wall with a trim frame. Used in office and hotel corridors; rough opening ≈ cabinet H + 20 mm × W + 20 mm, wall depth must clear the box. |
| Free-standing with legs | The hydrant hose cabinet c/w leg configuration — about 1180 mm tall on a fabricated stand, for yards and open floor plates. |
| Singapore lobbies | Hairline stainless, concealed hinges and a flush pull; SCDF practice is that hose reel cabinets are not locked. |
Give us the wall type and finish thickness and we cut the frame to match. For external cabinets we add a gasket and drip lip.
Straight from the workshop capability sheet, so your consultant knows what is possible before drawing. Building fire cabinets in Jiangsu, China since 2010.
We supply M&E contractors, fire protection specialists and distributors in both markets, FOB from our port. Project schedules and stock orders both welcome.
FOB pricing within 24 hours from your specification, BQ or drawing. Tiered by quantity, quoted per model.
One cabinet built to your drawing in about 7 working days. Sample cost is borne by the buyer and credited against the first order on request.
Material certificates, ISO 9001 records and third-party EN 60529 enclosure test reports. No Bomba or PSB listing claimed on the cabinet.
Free OEM: your brand, colour, lettering and packaging with no tooling fee.
Knocked-down or assembled, in export cartons or crates with corner and glass protection.
Sea freight to Port Klang, Penang, Johor, Singapore or your named port, FOB Xiamen.
Laser cutting, CNC bending, welding, epoxy powder coating, stainless finishing and export packing across three production bases.
Everything a consultant, contractor or Bomba submission needs. The Malaysia and Singapore drawing pack is online below — eight sheets as PDF plus the same drawings as AutoCAD DXF, free and with no sign-up. CAD blocks for plan layouts and Revit families are sent within one working day on request.
The common Malaysian cabinet is 800 × 700 mm with a choice of 400, 320 or 250 mm depth, in 1.2 mm mild steel with red epoxy powder coating. Depth follows the reel drum — a swinging arm needs the deeper body. Compact cabinets for a 22 in drum are made in 0.9 mm sheet.
Mild steel cabinets are typically 800 × 800 × 400 mm; the stainless equivalent is 790 × 790 × 360 mm in hairline SUS 304 or 316. Singapore projects specify stainless more often than Malaysia, especially in lobbies and public corridors.
As far as we can establish, no. The Bomba Sijil Perakuan Bahan in Malaysia and the TUV SUD PSB listing in Singapore apply to the hose reel and the valves — the certified equipment inside — not to the sheet-metal enclosure. Specify a certified reel and valve; we supply the cabinet with material certificates and EN 60529 enclosure test reports, and we do not claim a listing we do not hold.
Yes. Breeching inlet cabinets are 595 × 395 × 295 mm for 2-way and 595 × 595 × 295 mm for 4-way, built to BS 5041 Part 5 box dimensions with a clear tempered glass door. Landing valve cabinets are about 600 × 400 × 300 mm. All are supplied empty for your certified valve or breeching.
Mild steel with red epoxy powder coating is the Malaysian norm and is fine for corridors, car parks and plant rooms. Hairline stainless is preferred for Singapore lobbies and for any coastal exposure; SUS 316 for beachfront and industrial atmospheres. We make both on the same line.
Yes — the hydrant hose cabinet c/w leg configuration, about 1180 × 560 × 350 mm on a fabricated stand. It is the answer where there is no wall to fix to, in yards and open plant areas.
Yes — free OEM: your brand, colour, lettering and packaging with no tooling fee. We already produce hose reel cabinets, hydrant cabinets and extinguisher cabinets under distributors’ own brands.
FOB Xiamen with sea freight to Port Klang, Penang, Johor or Singapore. Cabinets ship knocked-down or assembled in export cartons or crates; mixing models and finishes in one container is fine.
