Fire hose cabinet installation comes down to four decisions made in the right order: confirm the wall, set the height, fix the cabinet the way its mounting type requires, and commission the equipment before handover. Get those four right and the cabinet will pass inspection and work first time in an emergency. This guide walks through each step for recessed, surface-mounted and free-standing cabinets.
Before You Install: Four Checks
- Wall type and depth — a recessed body needs a cavity deep enough for the cabinet plus clearance; solid concrete walls usually mean surface mounting unless the opening was cast in advance.
- Pipework position — the riser or branch pipe must meet the cabinet where the valve sits; agree this with the plumbing contractor before fixing anything.
- Clear access — nothing may block the door swing; the door should open at least 170 degrees.
- Code and specification — confirm the required cabinet size, hose type and signage with the project consultant and the local fire authority before drilling the first hole.
Who Does What on Site
Installation goes smoothly when three parties agree the sequence early: the builder forms openings and finishes walls, the plumbing contractor brings the riser or branch to the valve position, and the supplier provides fixing dimensions and cut-out drawings before the cabinets ship. Most delays we see come from these three working in the wrong order — openings cut after walls are finished, or pipework arriving where the hose rack sits.
Installing a Recessed Cabinet
1. Form the rough opening slightly larger than the cabinet body, following the manufacturer's cut-out dimensions — our fire hose cabinet dimensions guide lists the common cabinet sizes and series. 2. Sit the body in the opening, check it is level and plumb, and shim as needed so the door frame will sit flush with the finished wall face. 3. Fix through the side or back panels into the structure, seal the perimeter, then make good the plaster or cladding up to the frame. 4. Fit the door last, after wet trades are finished, so the finish stays clean.

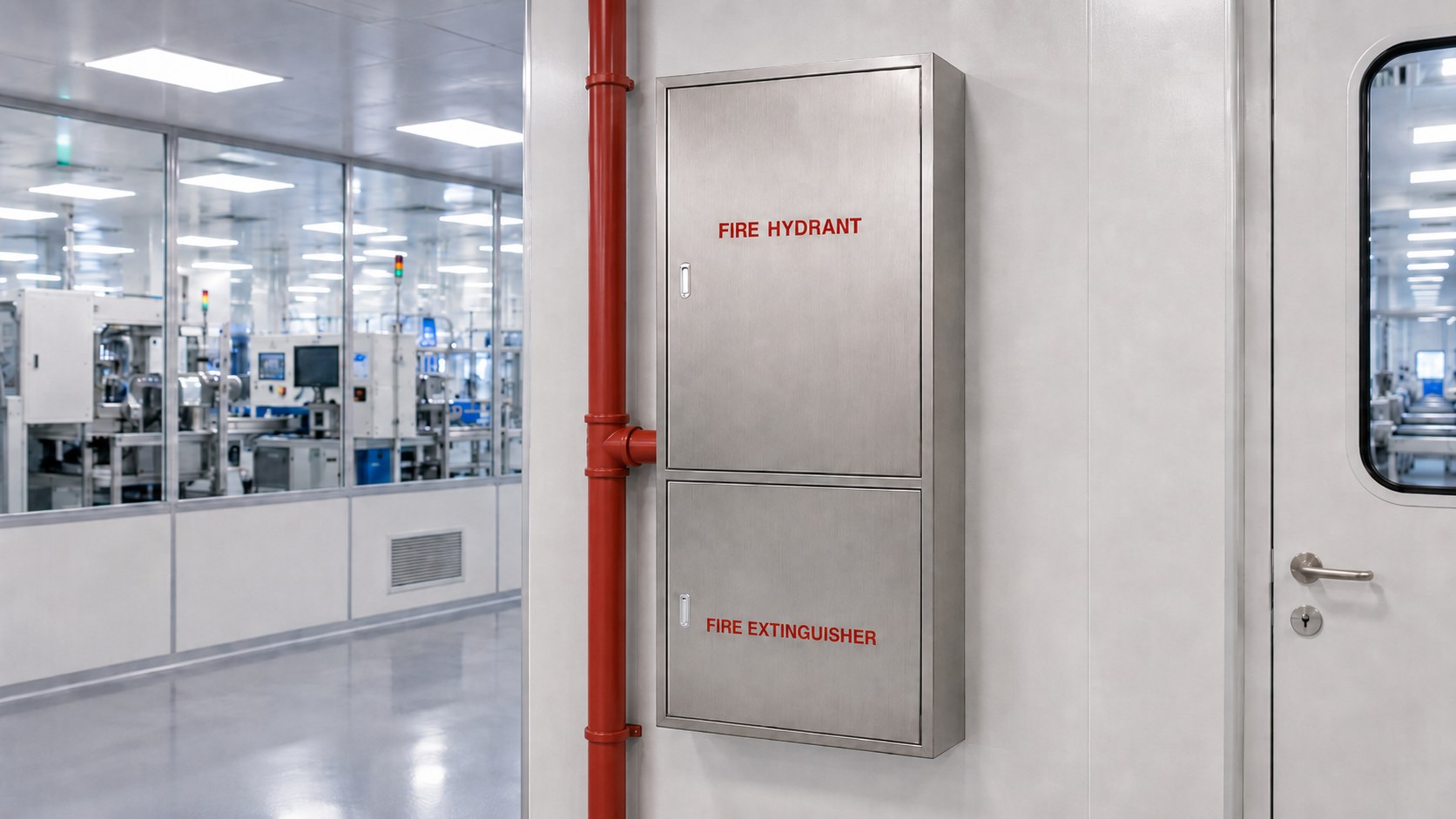

Installing a Surface-Mounted Cabinet
1. Mark the fixing holes with the cabinet held level against the wall. 2. Drill and fit anchors suitable for the wall material — steel cabinets loaded with hose and valve are heavy, so never rely on plasterboard fixings alone; fix into structure. 3. Bolt the cabinet through its back panel, check the door swings freely, and seal the top edge if the location sees dust or moisture.
Floor-Standing and Outdoor Cabinets
Free-standing cabinets bolt to a plinth or base frame through the floor flange. Outdoors, add three details: anchor bolts sized for wind load, a sealed cable or pipe entry, and a sloped top so rainwater runs off. For coastal or industrial air, specify stainless steel or a marine-grade coating — see the options on our carbon steel fire hose cabinet and stainless ranges.
Height and Positioning
Common practice places the operable parts — valve handle, hose connection, door handle — roughly 900 to 1500 mm above finished floor level, so both the equipment and the signage stay easy to reach and see. Exact heights vary by country and project specification, so confirm the figure in your local code before setting out.
Commissioning Checklist
- Door opens fully without fouling walls, pipes or furniture
- Valve operates through its full travel and does not leak
- Hose, nozzle and rack sit in their brackets and pull out cleanly
- Signage is fitted and visible along the corridor approach
- Keys or breakable elements are in place as specified
- The cabinet is clean inside, with no construction debris
Common Mistakes to Avoid
- Fixing a heavy cabinet to lightweight board without reaching the structure behind it
- Setting a recessed body proud or sunken instead of flush with the finished wall
- Installing the door before painting and plastering are complete
- Forgetting drainage and sealing details on outdoor cabinets
- Skipping the final valve and hose check because "the box is on the wall"
Installation is also the moment sizing errors surface, so settle dimensions before the cabinets ship. If you are still choosing between mounting types, start with the cabinet type guide on this site, then match the size to your wall — and the install itself becomes the easy part.
